Performance and Recommended Use of AD222A, AD393A, and AD221A PCIe Combination 4-Gbit/s Fibre Channel and Gigabit Ethernet Cards

11
1 FC Port and 1 GbE Port Combined Traffic
Performance
Figure 10 shows the performance results when mixed traffic is run simultaneously through
one 4-Gb Fibre Channel port and one Gigabit Ethernet port on the AD222A or AD393A
or AD221A card.
The following highlights show the exceptional performance the AD222A achieved during
combination traffic testing:
• The first three blue bars show disk read traffic consistently achieved greater than 99%
of link rate on the rx6600 system. The active port achieved 405 MB/s or greater of
disk read throughput. This was while continuous, full standard-Ethernet-frame traffic
was occurring on the active 1000Base-T port.
• The middle three blue bars show disk write traffic achieved greater than 99% of link
rate on the rx6600 system. The active FC port achieved 405 MB/s disk write
throughput. This was while continuous, full standard-Ethernet-frame traffic was
occurring on the active 1000Base-T port.
• The last three blue bars show disk bi-directional traffic achieved greater than 99% of
link rate on the rx6600 system. The active FC port achieved 1640 MB/s disk

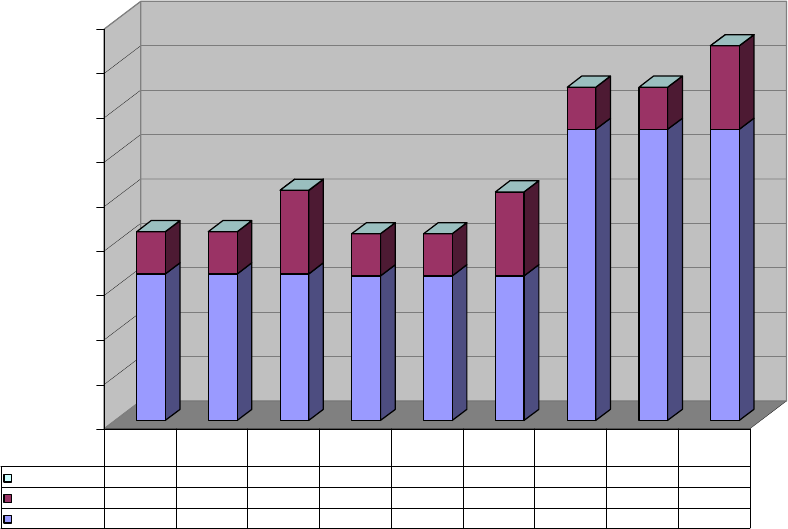

Figure 10: AD222A Throughput with 1 Fibre Channel and 1 GbE
100%
100%
100%
99%
99%
99%
99%
99%
99%
-
1,000
2,000
3,000
4,000
5,000
6,000
7,000
8,000
9,000
Megabits per second
1 FC + 1 GigE Total Througput
Link Utilization
100% 100% 100% 99% 99% 99% 99% 99% 99%
1 Port GigE
948 948 1,882 947 947 1,890 948 948 1,882
1 Port FC
3,302 3,302 3,302 3,257 3,257 3,257 6,556 6,556 6,556
Disk Rd
GigE Xmit
Disk Rd
GigE Recv
Disk Rd
GigE BD
Disk Wr
GigE Xmit
Disk Wr
GigE Recv
Disk Wr
GigE BD
Disk BD
GigE Xmit
Disk BD
GigE Recv
Disk BD
GigE BD
