Performance and Recommended Use of AD222A, AD393A, and AD221A PCIe Combination 4-Gbit/s Fibre Channel and Gigabit Ethernet Cards

13
2 FC Port and 2 GbE Port Combined Traffic
Performance

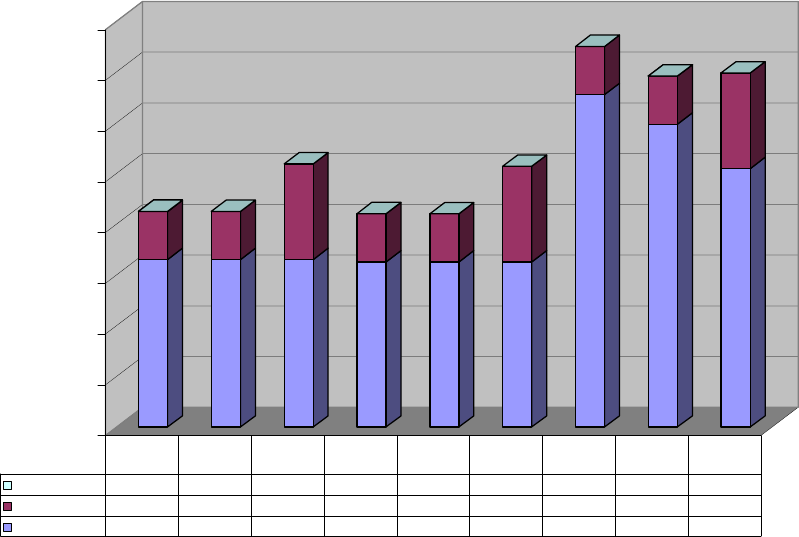

Figure 11 shows the performance results when mixed traffic is run simultaneously through
two 4-Gb Fibre Channel ports and two Gigabit Ethernet ports on the AD222A or
AD393A card.
The following highlights show the exceptional performance the AD222A achieved during
combination traffic testing:
• The first three blue bars show disk read traffic consistently achieved greater than 99%
of link rate on the rx6600 system. The active port achieved 820 MB/s or greater of
disk read throughput. This was while continuous, full standard-Ethernet-frame traffic
was occurring on the active 1000Base-T port.
• The middle three blue bars show disk write traffic achieved greater than 99% of link
rate on the rx6600 system. The active FC port achieved 814 MB/s disk write
throughput. This was while continuous, full standard-Ethernet-frame traffic was
occurring on the active 1000Base-T port.
• The last three blue bars show disk bi-directional traffic achieved greater than 70% of
link rate on the rx6600 system. The active FC port achieved 1275 MB/s disk
Figure 11: AD222A Throughput with 1 Fibre Channel and 1 GbE
100%
100%
100%
99%
99%
99%
99%
92%
82%
-
2,000
4,000
6,000
8,000
10,000
12,000
14,000
16,000
Megabits per second
2 FC + 2 GigE Total Througput
Link Utilization
100% 100% 100% 99% 99% 99% 99% 92% 82%
2 Port GigE
1,895 1,896 3,770 1,896 1,895 3,768 1,895 1,896 3,768
2 Port FC
6,604 6,604 6,604 6,513 6,513 6,513 13,111 11,941 10,191
Disk Rd
GigE Xmit
Disk Rd
GigE Recv
Disk Rd
GigE BD
Disk Wr
GigE Xmit
Disk Wr
GigE Recv
Disk Wr
GigE BD
Disk BD
GigE Xmit
Disk BD
GigE Recv
Disk BD
GigE BD
