Datasheet: ProCurve 14 dBi Yagi Antenna
Table Of Contents
- SPECIFICATIONS
- ANTENNA LOCATION
- DESCRIPTION
- SAFETY
- MOUNTING INFORMATION
- WEEP HOLES
- 1. Vertical Mounting: When mounting vertically, find two weep holes on the broad, flat side of the radome and cover with adhesive dots.
- 2. Horizontal Mounting: When mounting horizontally, find two weep holes on the narrow edge of the radome and cover with adhesive dots. When adhesive dots are applied, check to ensure holes are fully closed.
- ASSEMBLY
- ASSEMBLY (continued)
- 2. Orient for the desired ploarization and install the antenna base against the mast using the two U-bolts (04), four hex nuts (18), four lock washers (19), and two V-blocks (63) provided in the hardware kit.
- 3. If using the articulating mount, install the antenna ball into position and tilt for the desired elevation angle (Figure D). Tighten the socket screw with the supplied wrench.
- 4. Rotate the antenna to the desired directional position and tighten all hardware.
- GROUNDING
- LIGHTNING ARRESTER (optional)
- LIGHTNING ARRESTER (continued)

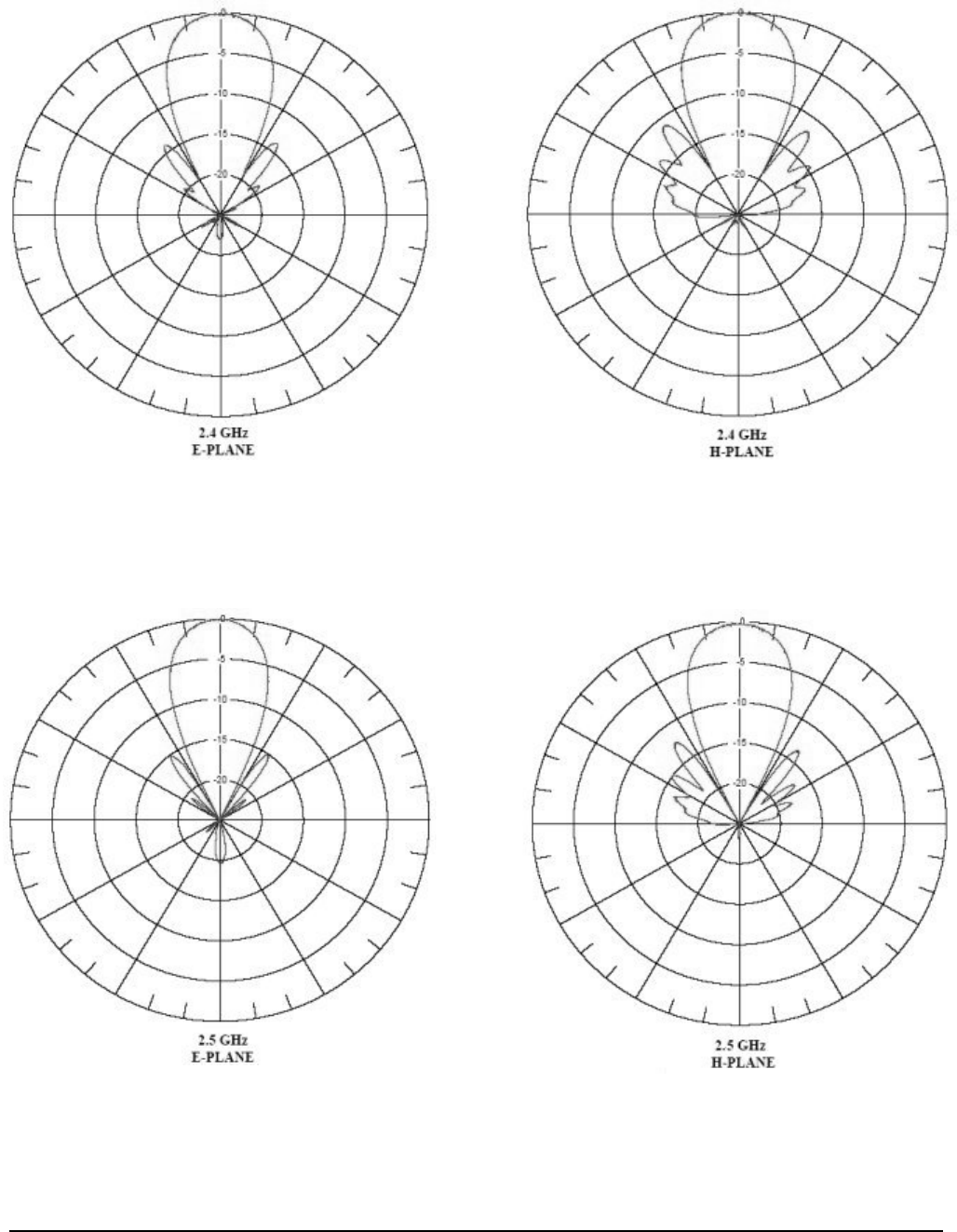

- J8448B Yagi-B Antenna: Radiation Plots
