Installation Manual
H3C S7502 Ethernet Switch Chapter 5 System Commissioning
5-4
4) After setting serial port parameters, click <OK>. Then the system will enter the
HyperTerminal dialogue box as shown in the following figure.

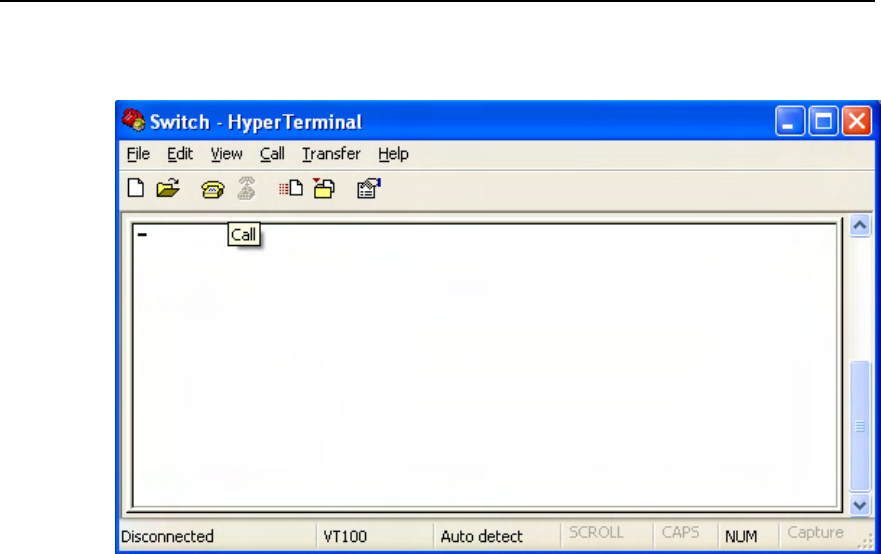

Figure 5-5 HyperTerminal interface
In the above dialogue box, select the Properties icon to enter the properties window.
Click Settings to set the attributes (see the following figure). In this interface, select
terminal emulation mode VT100 and then click <OK>.
