H3C S7502 Ethernet Switch Chapter 7 Software Maintenance
7-6

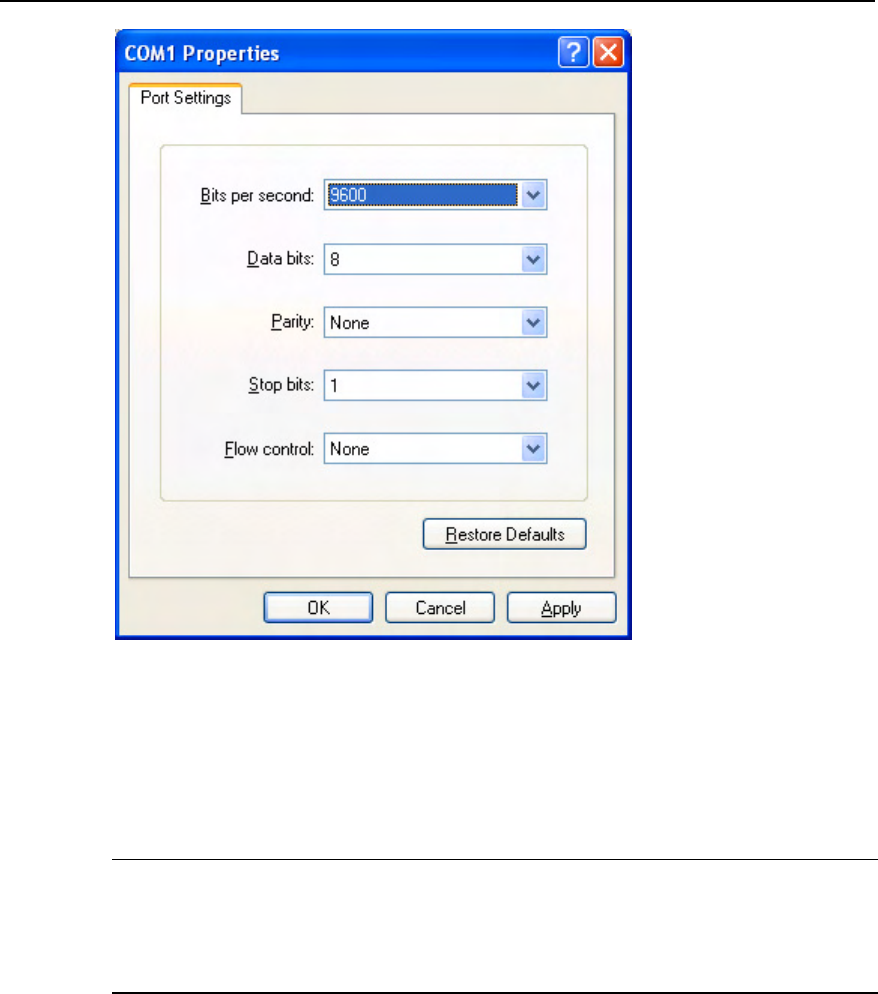

Figure 7-2 Console port configuration dialog box
Step 6: Click the Disconnect icon to disconnect the HyperTerminal from the switch and
then click the Connect icon to re-establish the connection using the new baud rate
setting.
Note:
After changing the baud rate setting, you must disconnect and reconnect the terminal
emulator to validate the new configuration.
Step 7: Press <Enter> to start program downloading. The system displays the following
information:
Now please start transfer file with XMODEM protocol.
If you want to exit, Press <Ctrl+X>
Downloading ... CCCCC
Step 8: Select [Transfer/Send File] in the HyperTerminal window. In the popup dialog
box similar to the following figure, click <Browse>, select the software you need to
download, and set the protocol to XModem.
