Installation Manual
H3C S7502 Ethernet Switch Chapter 7 Software Maintenance
7-7

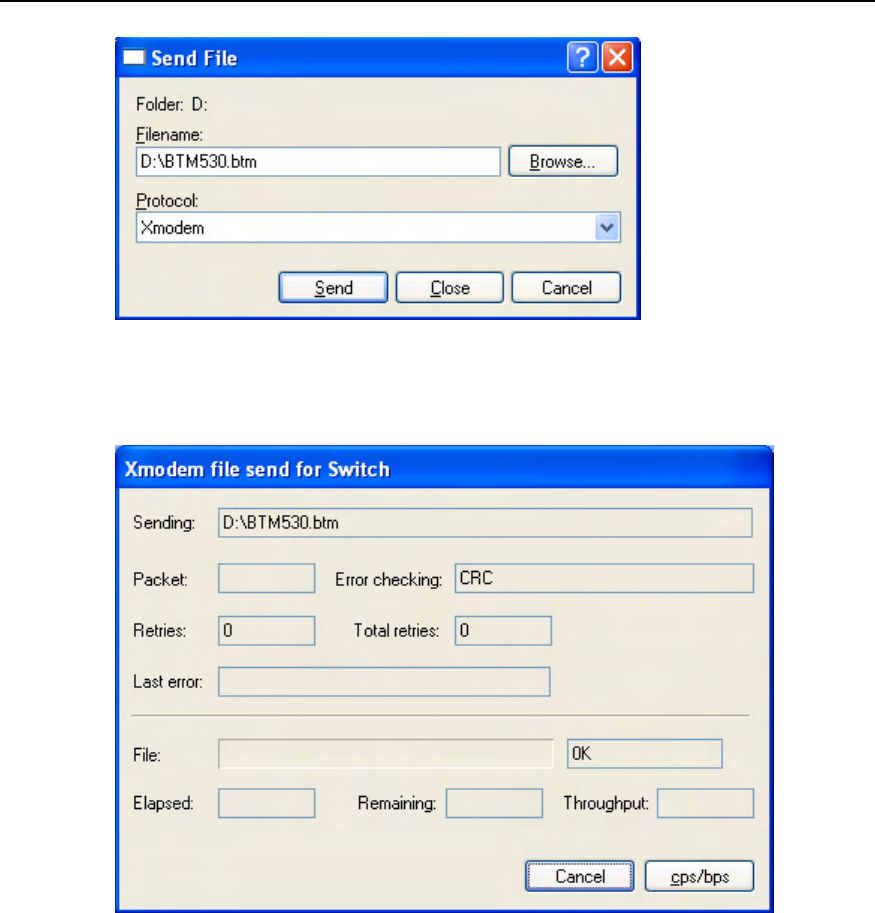

Figure 7-3 File Sending dialog box
Step 9: Click <Send>. The system displays the following interface.
Figure 7-4 Sending file interface
After completing the downloading, the system displays the following information:
Downloading ...CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC.done!
Are you sure to update SRPU bootrom? Yes or No(Y/N)y
Step 10: Type <Y> to start file downloading or <N> to return to the program
downloading menu. If you type <Y>, the system starts Boot ROM program downloading
automatically. The system displays the following information upon the completion of the
entire process:
SRPU bootrom is updating now......
Get flash Type......FLASH_M29W040B
Erasing flash......done!
Programming flash......done!
