Installation Manual
H3C S7502 Ethernet Switch Chapter 1 Product Overview

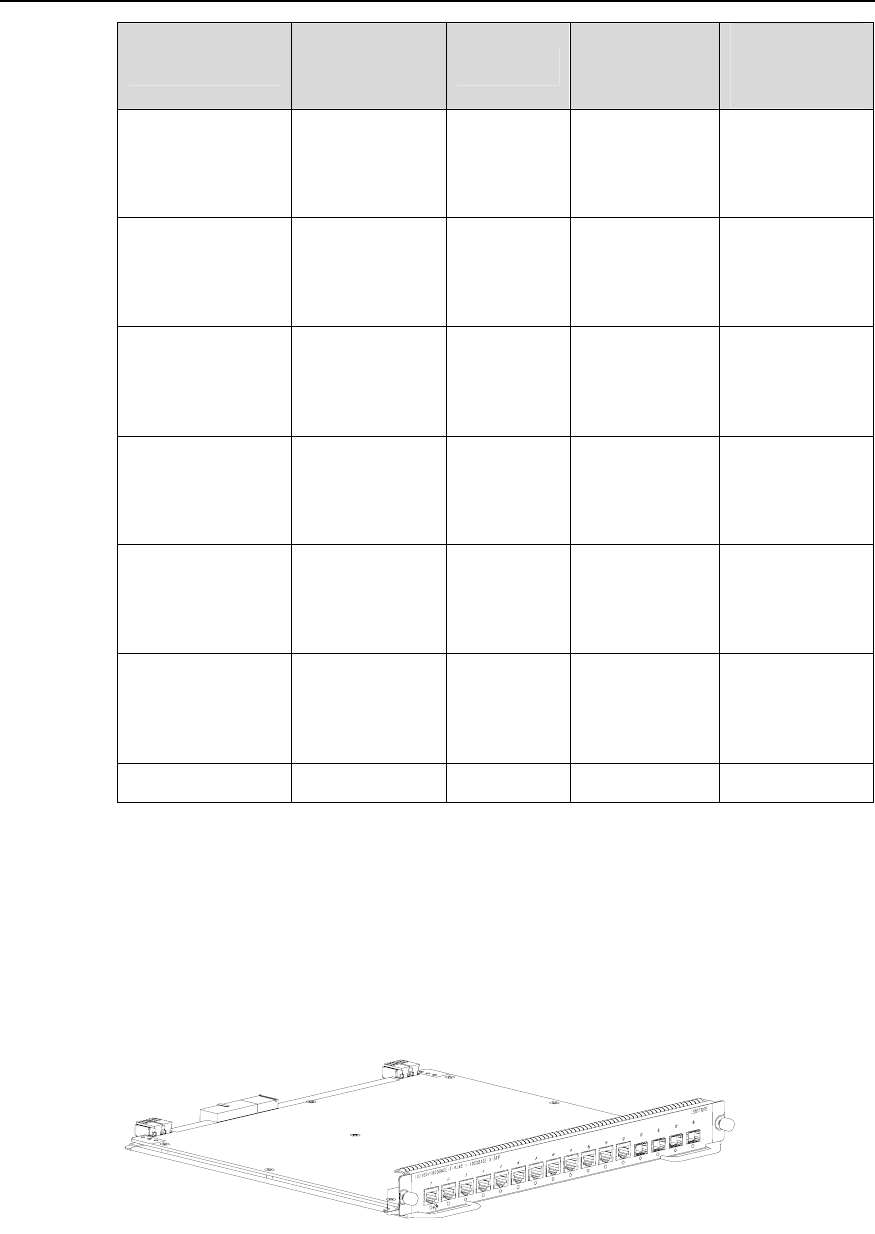

1-6
SFP module
Central
wavelength
Connector
Matching
cable
Maximum
transmission
distance
SFP-GE-LH70-S
M1510-CW
1510 nm LC
9 µm/125 µm
single mode
optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-S
M1530-CW
1530 nm LC
9 µm/125 µm
single mode
optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-S
M1550-CW
1550 nm LC
9 µm/125 µm
single mode
optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-S
M1570-CW
1570 nm LC
9 µm/125 µm
single mode
optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-S
M1590-CW
1590 nm LC
9 µm/125 µm
single mode
optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-S
M1610-CW
1610 nm LC
9 µm/125 µm
single mode
optical fiber
cable
70 km (43 mi)
SFP-GE-T — RJ45 — 100 m (328 ft)
II. Ethernet port cable for 4-port 10/100/1000Base-T
The Ethernet port cable is category-5 twisted pair cable, ended with RJ45 connectors,
whose maximum transmission distance is 100 m.
1.3 LS81T12PE
Figure 1-5 Appearance of LS81T12PE
