Installation Manual
H3C S7502 Ethernet Switch Chapter 1 Product Overview
1-9
1.4 LS81T16P

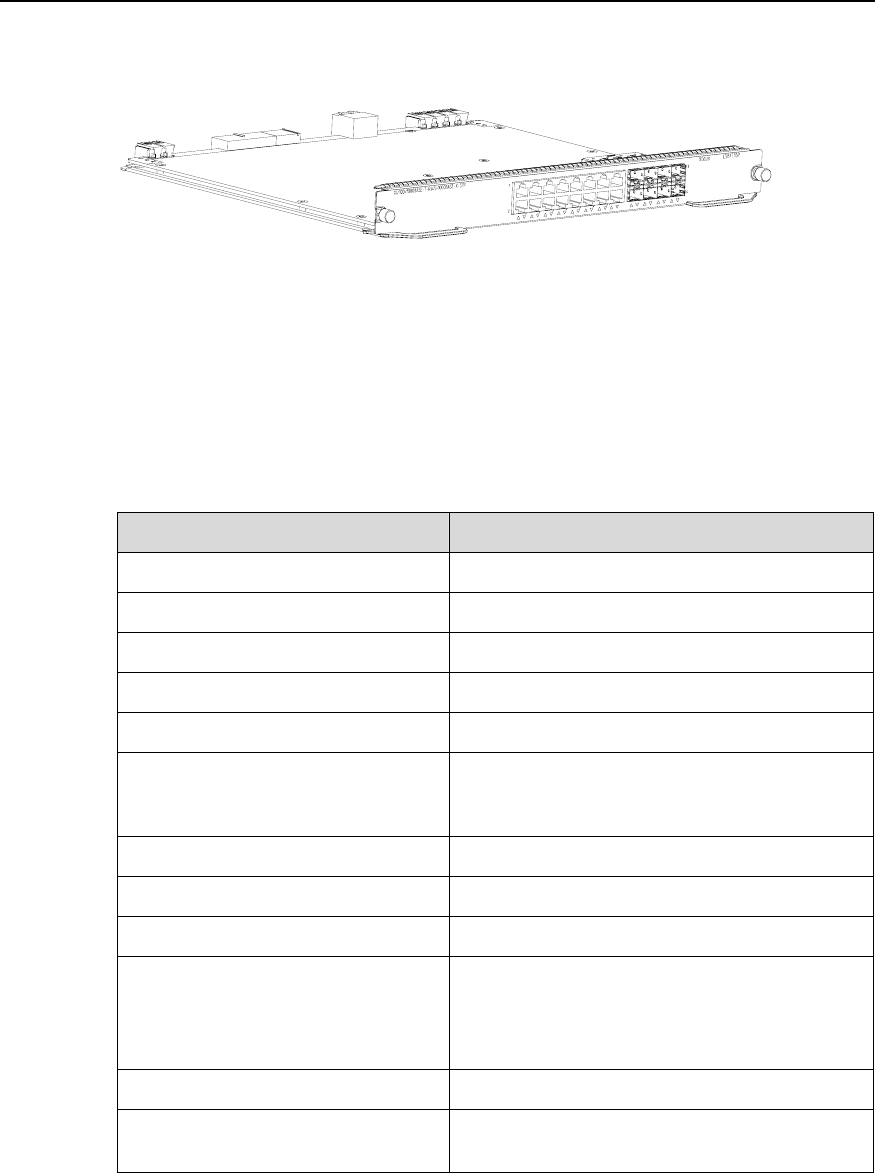

Figure 1-8 Appearance of LS81T16P
1.4.1 Specifications
LS81T16P provides the XG high-speed bus and 16 × 10/100/1000Base-T ports and 8 ×
1000Base-X (SFP) ports.
Table 1-7 LS81T16P specifications
Item LS81T16P
CPU MPC8245 300 MHz
BootROM 512 KB
Flash memory 32 MB
SDRAM 256 MB
Dimensions (H × W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Port
z 16 × 10/100/1000Base-T auto-sensing
Ethernet electric ports
z 8 × 1000Base-X (SFP) Ethernet ports
Max power consumption 55 W
Connector RJ45, LC
Number of ports 24
Port rate
z 10 Mbps half/full duplex
z 100 Mbps half/full duplex
z 1000 Mbps full duplex
z MDI/MDI-X auto-sensing
SFP module Refer to Table 1-4
Port cable and max transmission
distance
100 m (328 ft) over category-5 twisted pair
cable
