Installation Manual
H3C S7502 Ethernet Switch Chapter 1 Product Overview
1-11
Table 1-8 Description of LEDs on the panel of an LS81T16P
LED Status
OFF The link is down or no link is presented.
ON The link is active.
LINK/ACT
Blinking Data is being transmitted or received on the port.
1.4.3 Port Cable
Refer to section 1.2.3 "Port Cable” on page 1-5 for information about the port cable
required by an LS81T16P.
1.5 LS81T32P

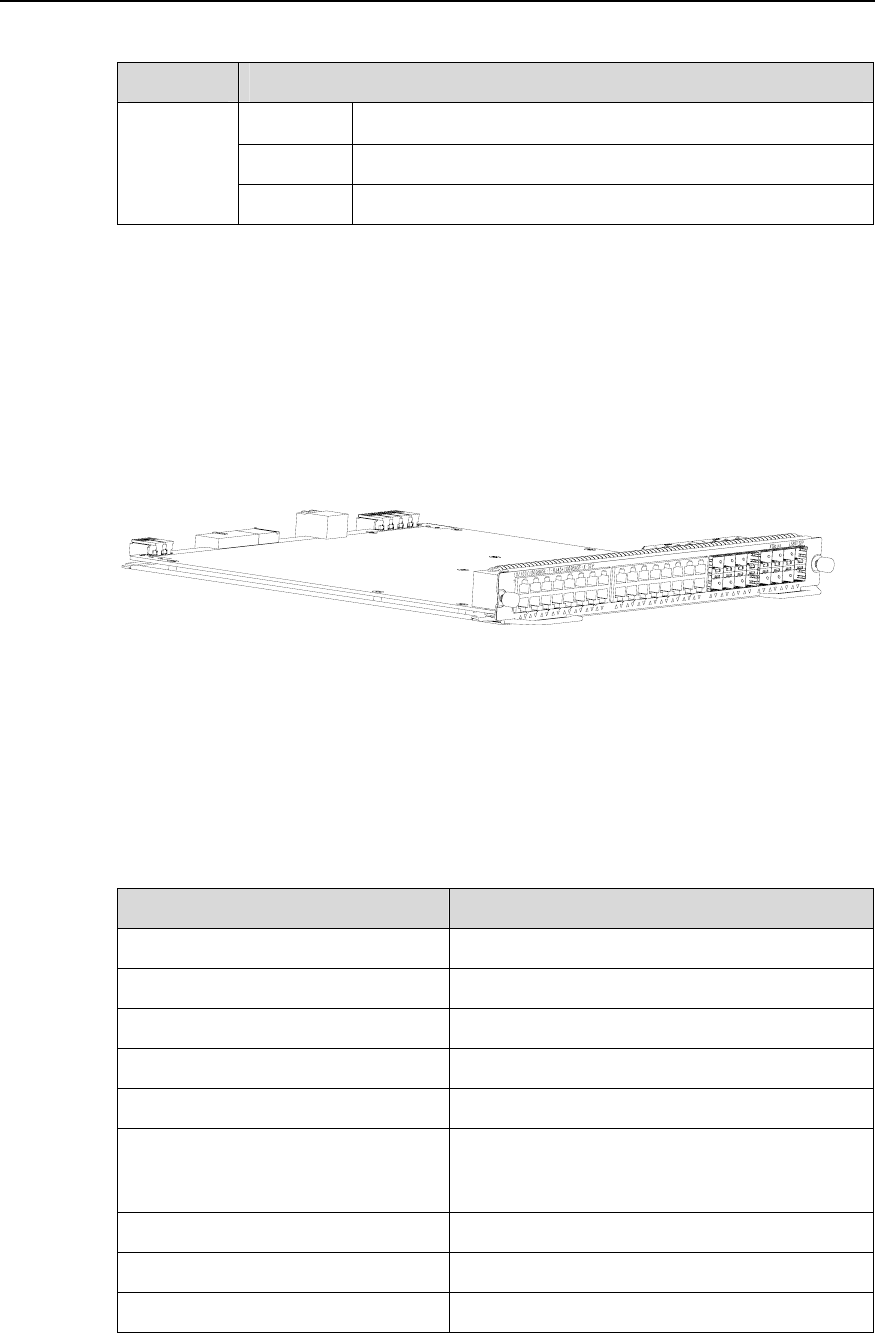

Figure 1-11 Appearance of LS81T32P
1.5.1 Specifications
LS81T32P provides the XG high-speed bus, 32 × 10/100/1000Base-T auto-sensing
Ethernet electric ports and 16 ×1000Base-X (SFP) Ethernet ports.
Table 1-9 LS81T32P specifications
Item LS81T32P
CPU MPC8245 300 MHz
BootROM 512 KB
Flash memory 32 MB
SDRAM 256 MB
Dimensions (H × W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Port
z 32 × 10/100/1000Base-T auto-sensing
Ethernet electric ports
z 16 × 1000Base-X (SFP) Ethernet ports
Max power consumption 95 W
Connector RJ45, LC
Number of ports 48
