Installation Manual
H3C S7502 Ethernet Switch Chapter 1 Product Overview
1-14

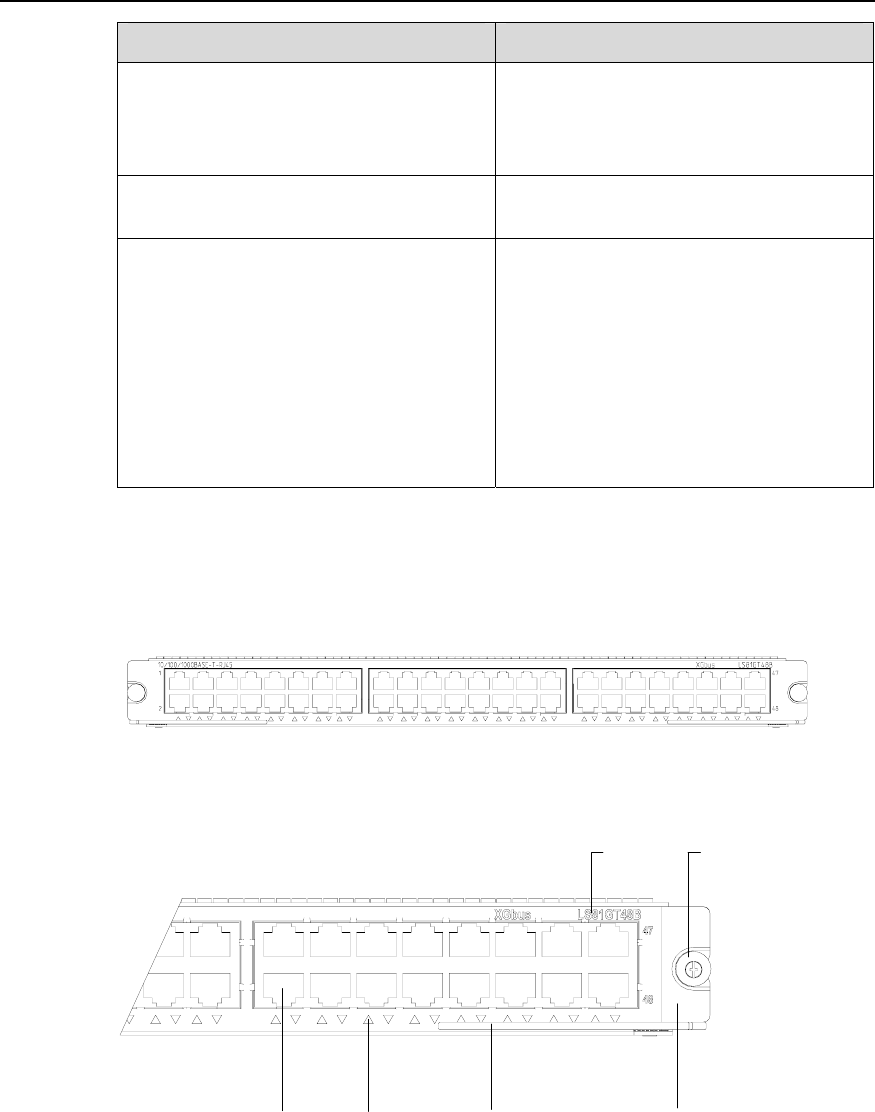

Item LS81GT48B
Port rate
z 10 Mbps half/full duplex
z 100 Mbps half/full duplex
z 1000 Mbps half/full duplex
z MDI/MDI-X auto-sensing
Port cable and max transmission
distance
100 m (328 ft) over category-5 twisted
pair cable
Supported standard
z IEEE 802.3
z IEEE 802.3ab
z IEEE 802.3x
z IEEE 802.1p
z IEEE 802.1D
z IEEE 802.1Q
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
1.6.2 Panel and LEDs
The following figure illustrates the panel of an LS81GT48B.
Figure 1-15 LS81GT48B panel
(1) (2)
(5)(6)
(3)
(4)
(1) Silkscreen (2) Nut
(3) LPU edge (Green) (4) Ejector lever
(5) Ethernet port LED (6) Ethernet port
Figure 1-16 LS81GT48B panel
Each port is with a green LED.
