Table 1-14 Description of LEDs on the panel of an LS81GP48
LED Status
OFF The link is down or no link is presented.
ON The link is active.
LINK/ACT
Blinking Data is being transmitted or received on the port.
1.7.3 Port Cable
Refer to Table 1-4.
1.8 LS81TGX2

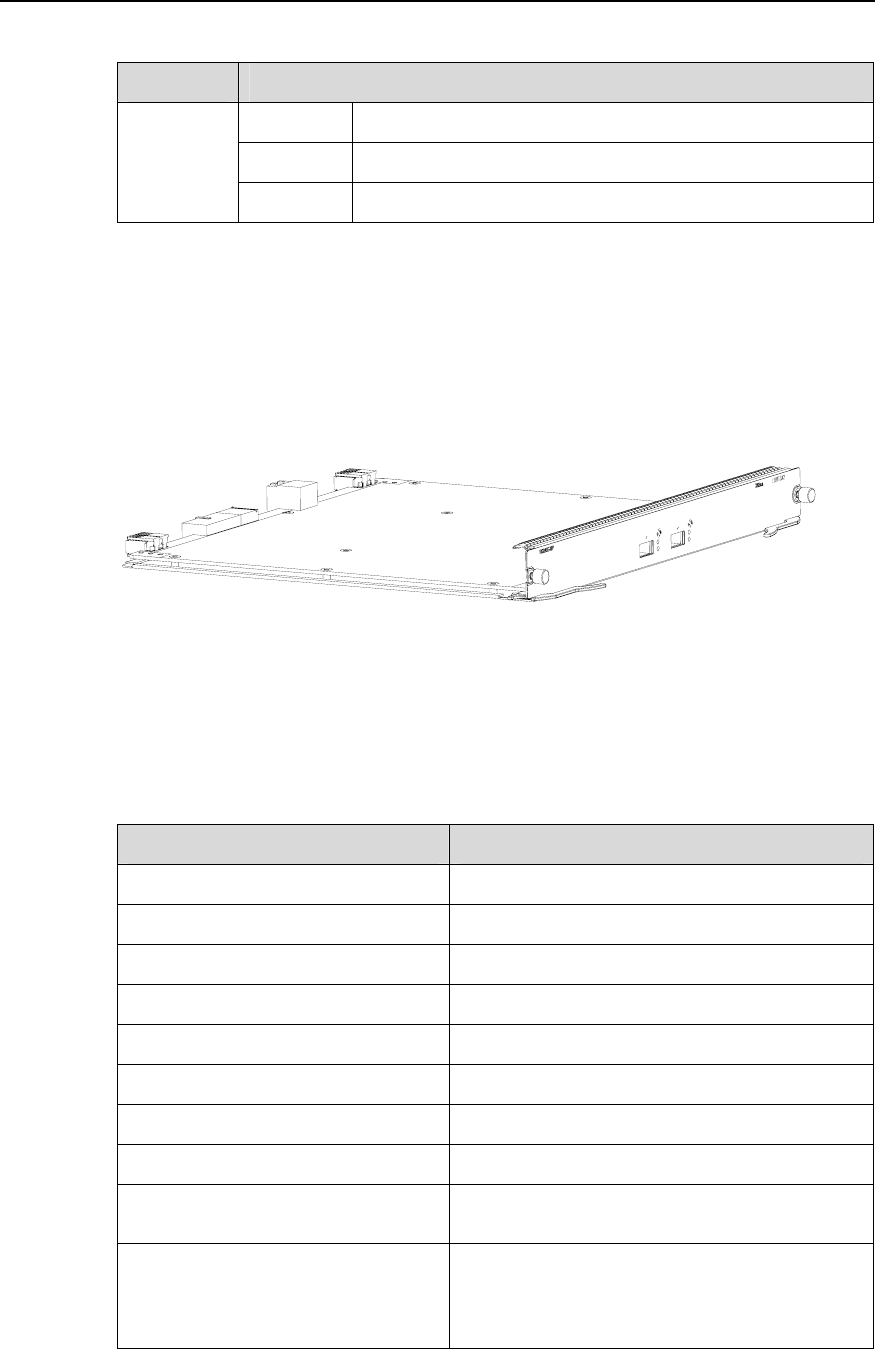

Figure 1-20 Appearance of LS81TGX2
1.8.1 Specifications
LS81TGX2 provides the XG high-speed bus and two full duplex 10GBase-XFP ports.
Table 1-15 LS81TGX2 specifications
Item LS81TGX2
CPU MPC8245 300 MHz
BootROM 512 KB
Flash memory 32 MB
SDRAM 256 MB
Dimensions (H × W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Max power consumption 35 W
Connector LC
Number of ports 2
Port rate
z 10 Gbps
z Full duplex
XFP module
z XFP-LX-SM1310 (single mode optical
fiber, 1310 nm, 10 km [6.2 mi] )
z XFP-SX-MM850 (multimode optical fiber,
850 nm, 300 m [984 ft] )
