H3C S7502 Ethernet Switch Chapter 1 Product Overview
1-20
Item LS81TGX4
Flash memory 32 MB
SDRAM 256 MB
Dimensions (H × W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Max power consumption 55 W
Connector LC
Number of ports 4
Port rate
z 10 Gbps
z Full duplex
XFP module
z XFP-LX-SM1310 (single mode optical
fiber, 1310 nm, 10 km [6.2 mi] )
z XFP-SX-MM850 (multimode optical fiber,
850 nm, 300 m [984 ft] )
Supported standard
z IEEE 802.3
z IEEE 802.1p
z IEEE 802.1Q
z IEEE 802.1D
z IEEE 802.3x
z IEEE 802.3ad
z IEEE 802.3ae
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
1.9.2 Panel and LEDs
The following figure illustrates the panel of an LS81TGX4.

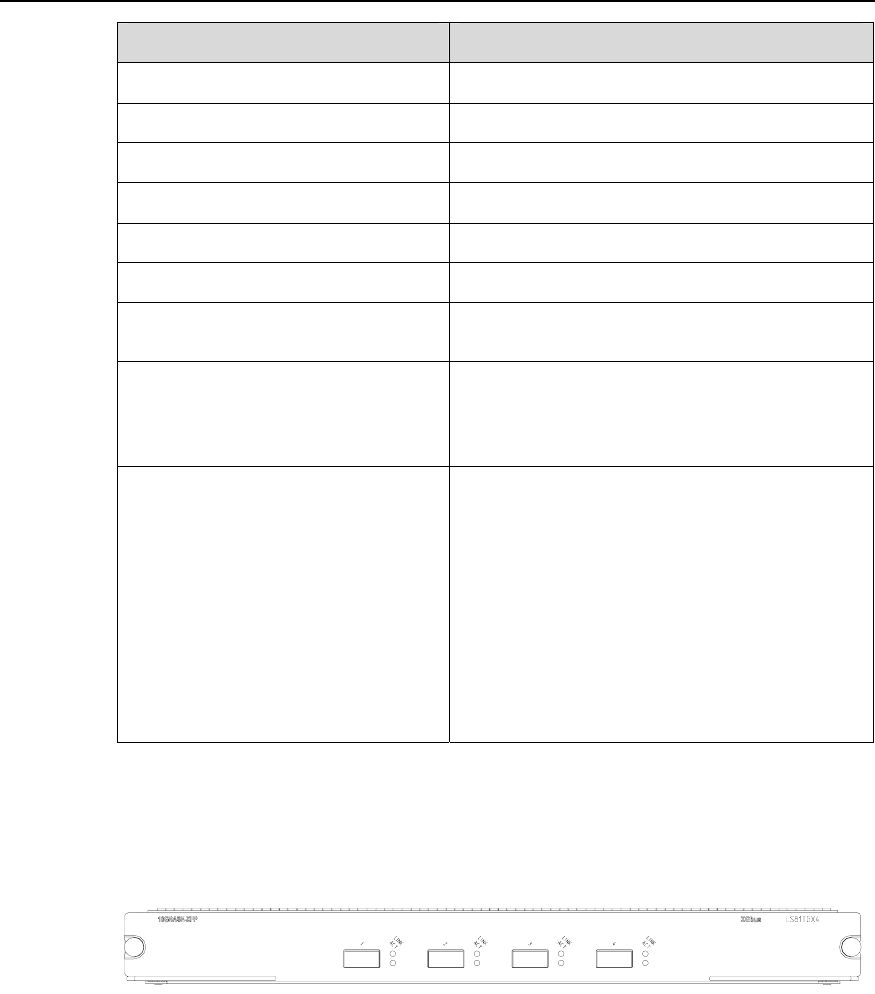

Figure 1-24 LS81TGX4 panel
