Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-2
Item LS81FT48E
Max power consumption 35 W
Connector RJ-45
Number of ports 48
Port rate
z 10/100 Mbps half-/full-duplex
z MDI/MDI-X auto-sensing
Matching cable and maximum
transmission distance
Category-5 twisted pair with maximum
transmission distance of 100 m (328 ft)
Supported standard
z IEEE 802.3
z IEEE 802.3u
z IEEE 802.3ad
z IEEE 802.3x
z IEEE 802.1p
z IEEE 802.1D
z IEEE 802.1Q
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
2.2.2 Panel and LEDs

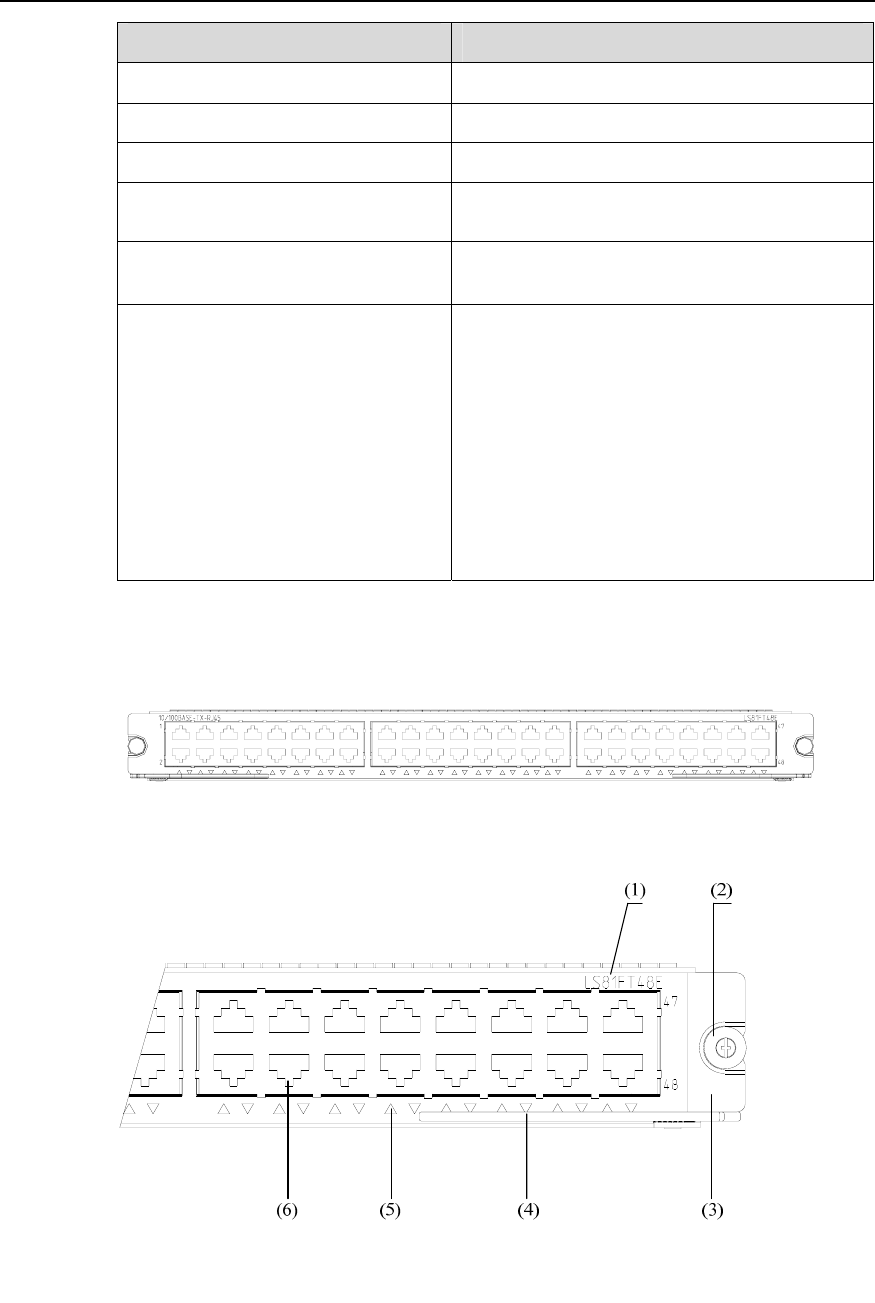

Figure 2-2 LS81FT48E panel
(1) Silkscreen of the LPU name (2) Captive screw
(3) LPU edge (Purple) (4) Ejector lever
(5) Ethernet port LED (6) Ethernet port
Figure 2-3 Partial amplification of LS81FT48E panel
