H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-4
Item LS81FT48F
Number of interfaces 48
Port rate
z 10/100 Mbps half-/full-duplex
z MDI/MDI-X auto-sensing
Matching cable and maximum
transmission distance
Category-5 twisted pair with maximum
transmission distance of 100 m (328 ft)
Maximum PoE distance 100m (328 ft)
Max power each port can provide
Each port provides a maximum power of 15.4
W for the connected device.
Supported standard
z IEEE 802.3
z IEEE 802.3u
z IEEE 802.3x
z IEEE 802.3ad
z IEEE 802.1p
z IEEE 802.1D
z IEEE 802.1Q
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
z IEEE 802.3af
2.3.2 Panel and LEDs

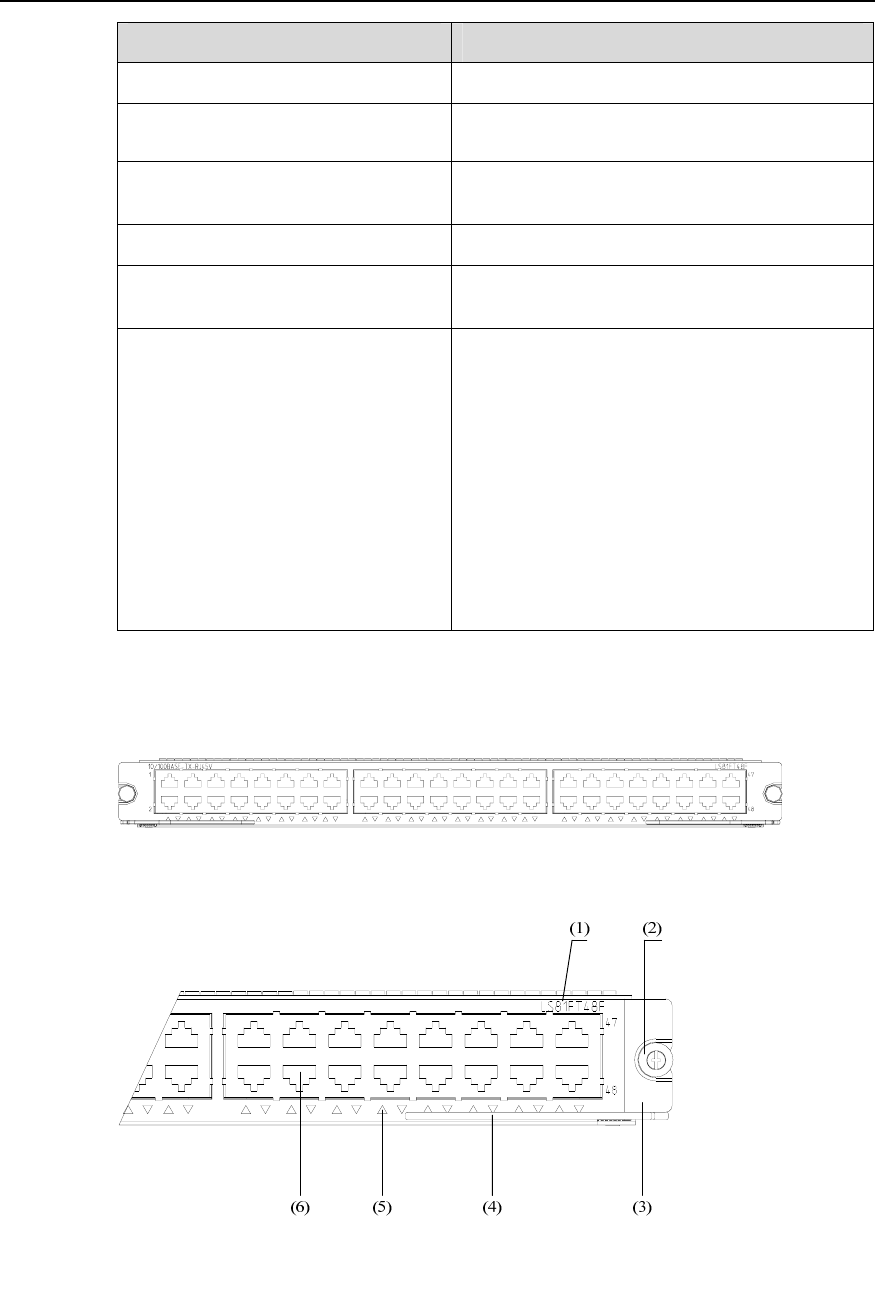

Figure 2-5 LS81FT48F panel
(1) Silkscreen of the LPU name (2) Captive screw
(3) LPU edge (Purple) (4) Ejector lever
(5) Ethernet port LED (6) Ethernet port (Supporting PoE)
Figure 2-6 Partial amplification of LS81FT48F panel
