H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-5
Every port has a green LED. The following table describes the LED state.
Table 2-4 LED state description of LS81FT48F
LED State Description
Off
No link is present.
On
A link is present
LINK/ACT
Blinking
Packets are being transmitted/received on the port.
2.3.3 Matching Cable
The matching cable to the port is category-5 twisted pair with a maximum transmission
distance of 100 m (328 ft).
2.4 LS81FP48

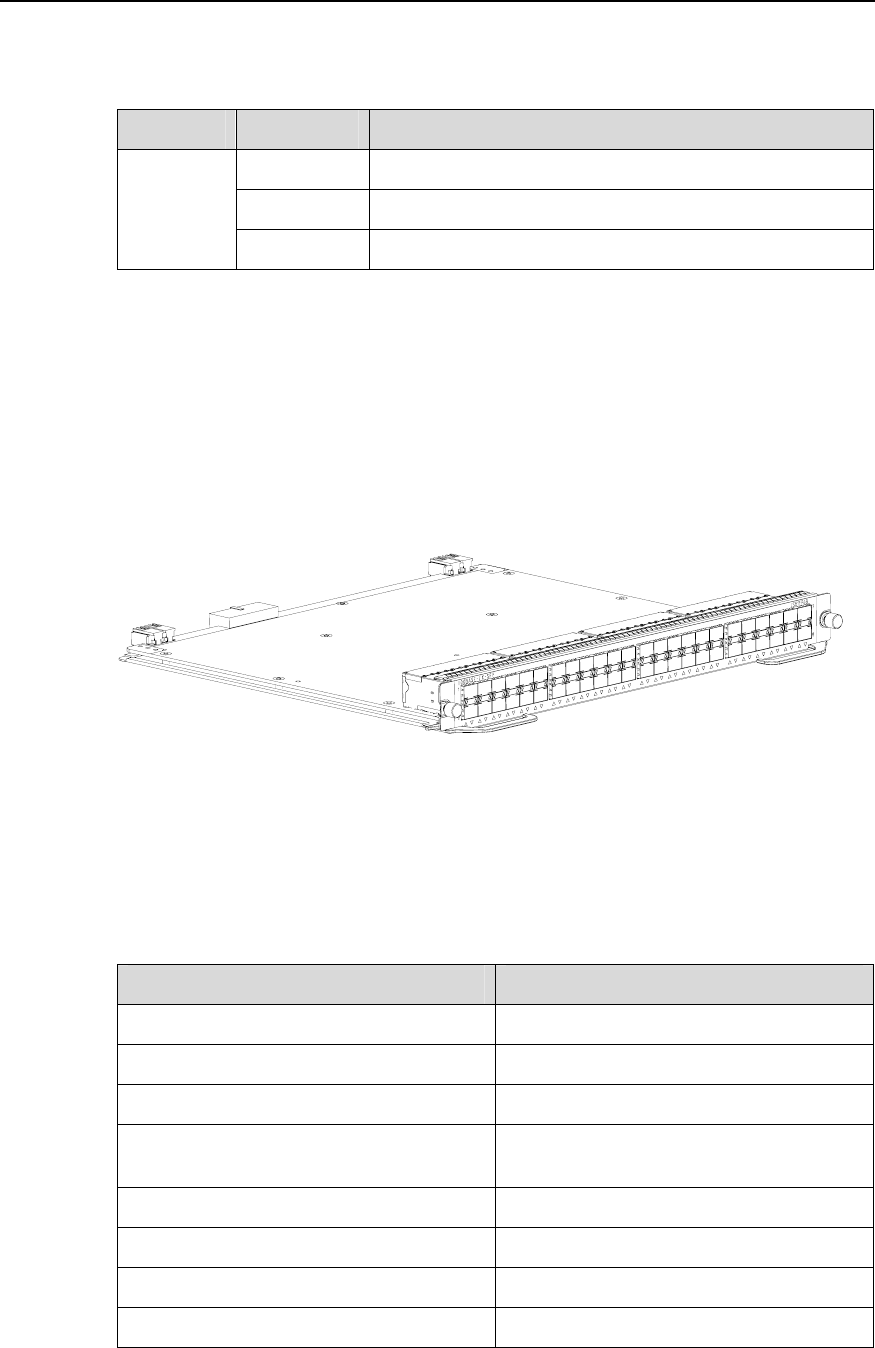

Figure 2-7 LS81FP48
2.4.1 Technical Specifications
This LPU provides 48 × 100 Mbps full duplex SFP Ethernet optical ports.
Table 2-5 LS81FP48 specifications
Item LS81FP48
CPU MPC8241, 200 MHz
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (H x W x D)
40.1 × 376.7 × 354.5 mm (1.6 × 14.8 ×
14 in.)
Max power consumption 36.5 W
Connector LC
Number of ports 48
Port transmission speed 100 Mbps full duplex
