Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-8
2.5 LS81GT8UE

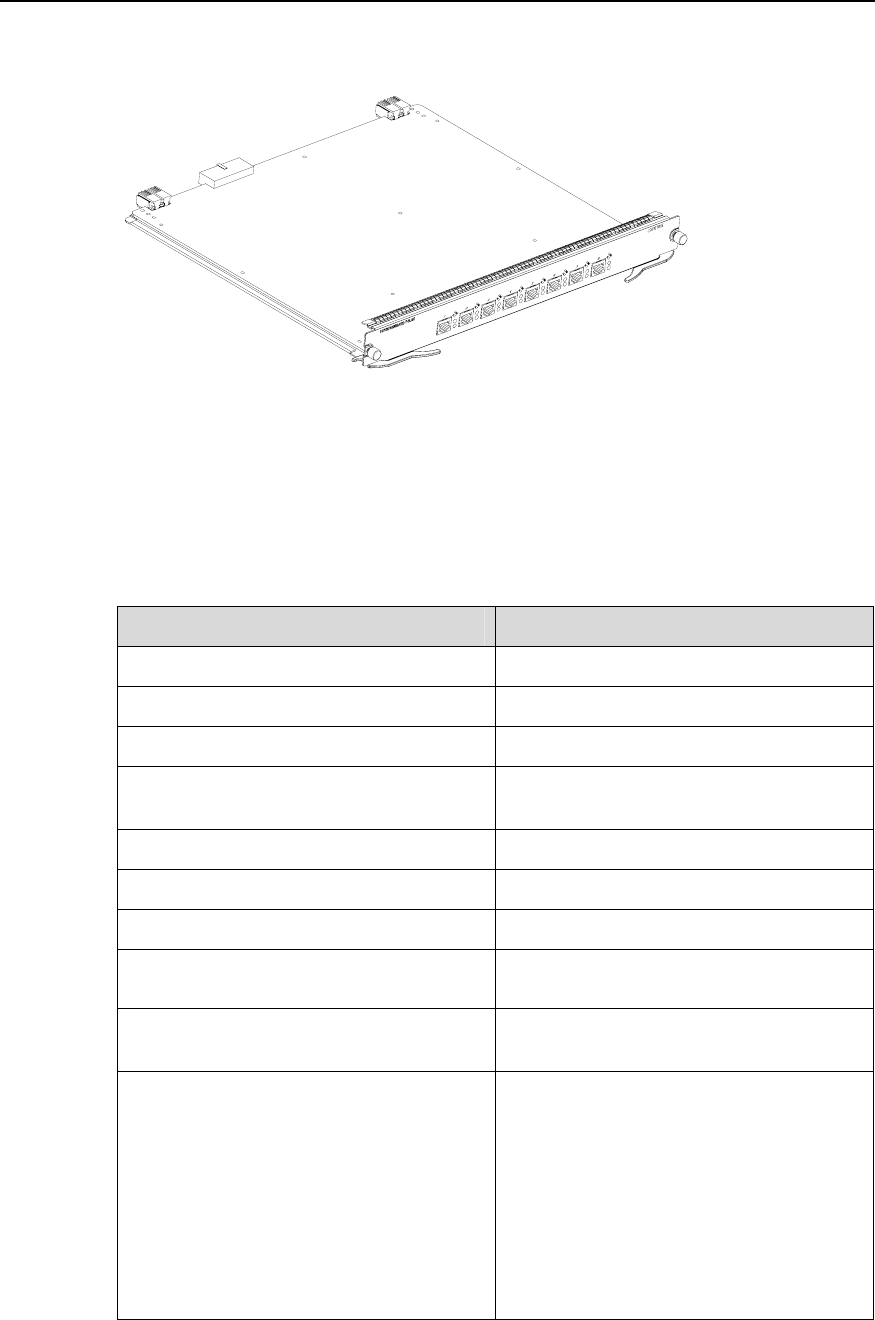

Figure 2-10 LS81GT8UE appearance
2.5.1 Technical Specifications
This LPU provides eight 10/100/1000 Mbps auto-sensing Ethernet electrical ports.
Table 2-8 LS81GT8UE specifications
Item LS81GT8UE
CPU MPC850, 50 MHz
Boot ROM 512 KB
SDRAM 64 MB
Dimensions (H x W x D)
40.1 × 376.7 × 354.5 mm (1.6 × 14.8 ×
14 in.)
Max power consumption 11 W
Connector RJ-45
Number of ports 8
Port rate
z 10/100/1000 Mbps half-/full-duplex
z MDI/MDI-X auto-sensing
Matching cable and maximum
transmission distance
Category-5 twisted pair with maximum
transmission distance of 100 m (328 ft)
Supported standard
z IEEE 802.3
z IEEE 802.3u
z IEEE 802.3ab
z IEEE 802.3x
z IEEE 802.1D
z IEEE 802.1Q
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
