Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-11
2.6.2 Panel and LEDs

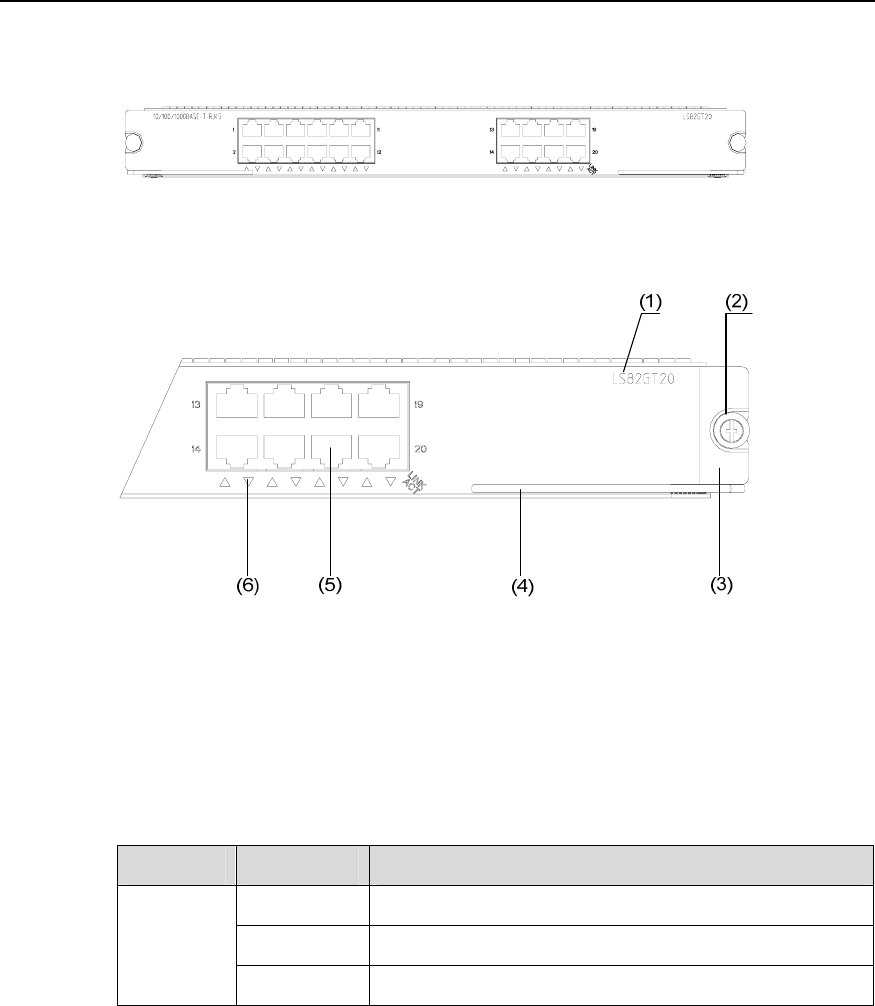

Figure 2-14 LS82GT20 panel
(1) Silkscreen of the LPU (2) Captive screw
(3) LPU edge (Purple) (4) Ejector lever
(5) Ethernet interface (Gigabit) (6) Ethernet port LED
Figure 2-15 Partial amplification of LS82GT20 panel
Every port has one LED. The following table describes the LED state.
Table 2-11 LED state description of LS82GT20
LED State Description
OFF
No link is present.
ON
A link is present
LINK/ACT
Blinking
Packets are being transmitted/received on the port.
2.6.3 Matching Cable
The matching cable to the port is category-5 twisted pair with a maximum transmission
distance of 100 m (328 ft).
