H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-12
2.7 LS82GT20A

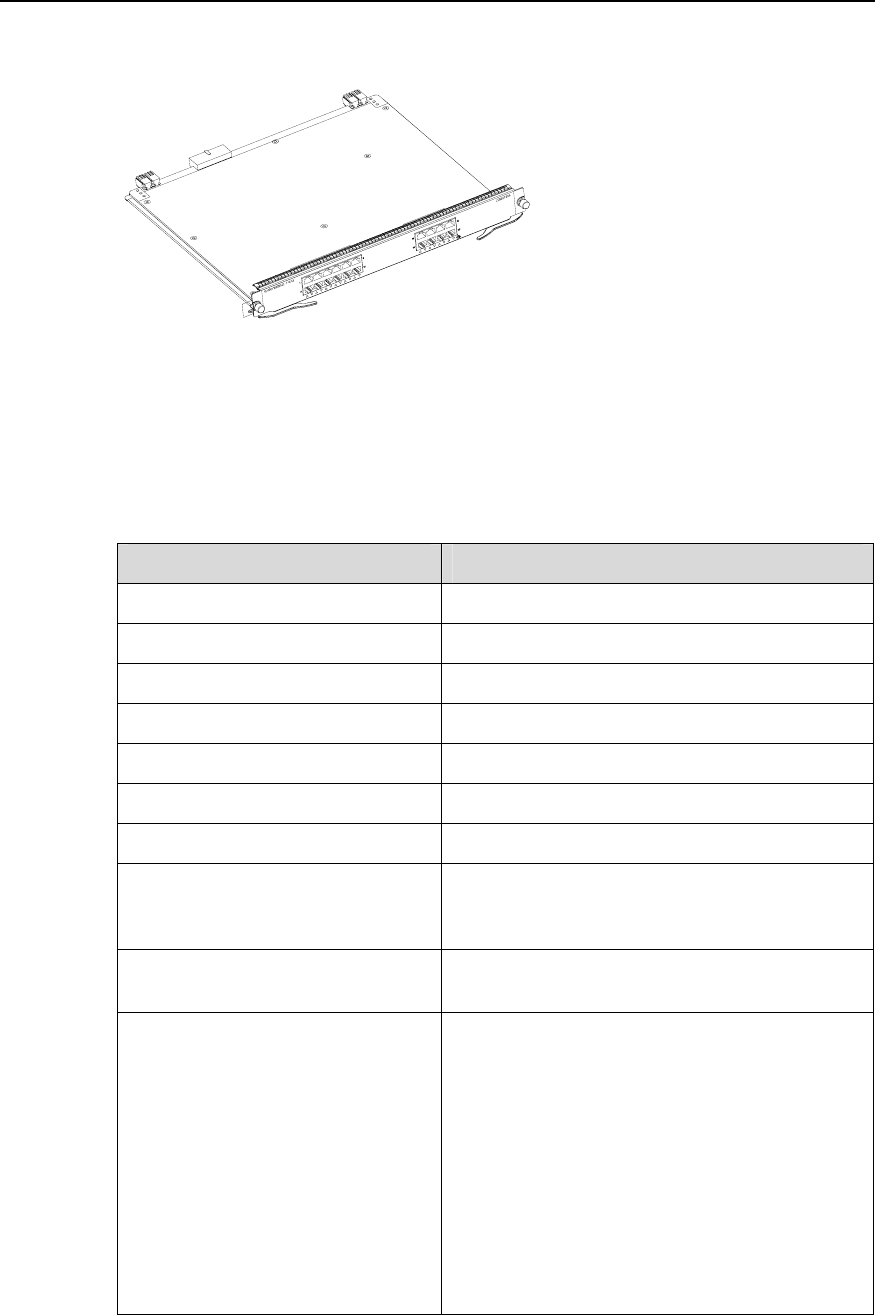

Figure 2-16 LS82GT20A appearance
2.7.1 Technical Specifications
This LPU provides 20 x 10/100/1000 Mbps auto-sensing Ethernet electrical ports.
Table 2-12 LS82GT20A specifications
Item LS82GT20A
CPU MPC8241, 200 MHz
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (H x W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Max power consumption 45 W
Connector RJ-45
Number of ports 20
Port rate
z 10/100 Mbps half-/full-duplex
z 1000 Mbps full-duplex
z MDI/MDI-X auto-sensing
Matching cable and maximum
transmission distance
Category-5 twisted pair with maximum
transmission distance of 100 m (328 ft)
Supported standard
z IEEE 802.3
z IEEE 802.3u
z IEEE 802.3ab
z IEEE 802.3x
z IEEE 802.1p
z IEEE 802.1D
z IEEE 802.1Q
z IEEE 802.1X
z IEEE 802.1w
z IEEE 802.1ad
z IEEE 802.1s
