H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-13
2.7.2 Panel and LEDs

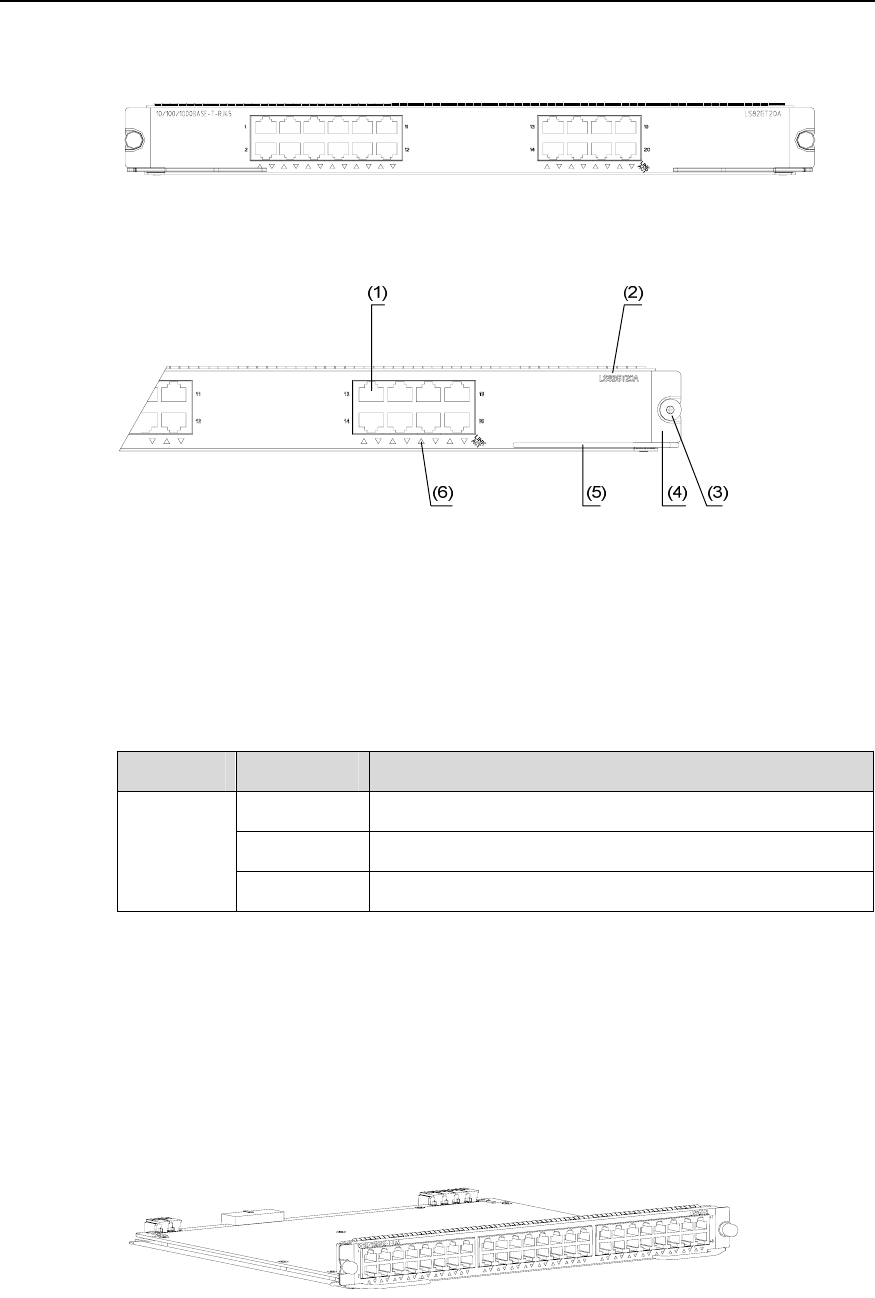

Figure 2-17 LS82GT20A panel
(1) Ethernet interface (Gigabit) (2) Silkscreen of the LPU name
(3) Captive screw (4) LPU edge (Purple)
(5) Ejector lever (6) Ethernet port LED
Figure 2-18 Partial amplification of LS82GT20A panel
Every port has one LED. The following table describes the LED state.
Table 2-13 LED state description of LS82GT20A
LED State Description
OFF
No link is present.
ON
A link is present
LINK/ACT
Blinking
Packets are being transmitted/received on the port.
2.7.3 Matching Cable
The matching cable to the port is category-5 twisted pair with a maximum transmission
distance of 100 m (328 ft).
2.8 LS81GT48
Figure 2-19 LS81GT48 appearance
