H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-14
2.8.1 Technical Specifications
This LPU provides 48 x 10/100/1000 Mbps auto-sensing Ethernet electrical ports.

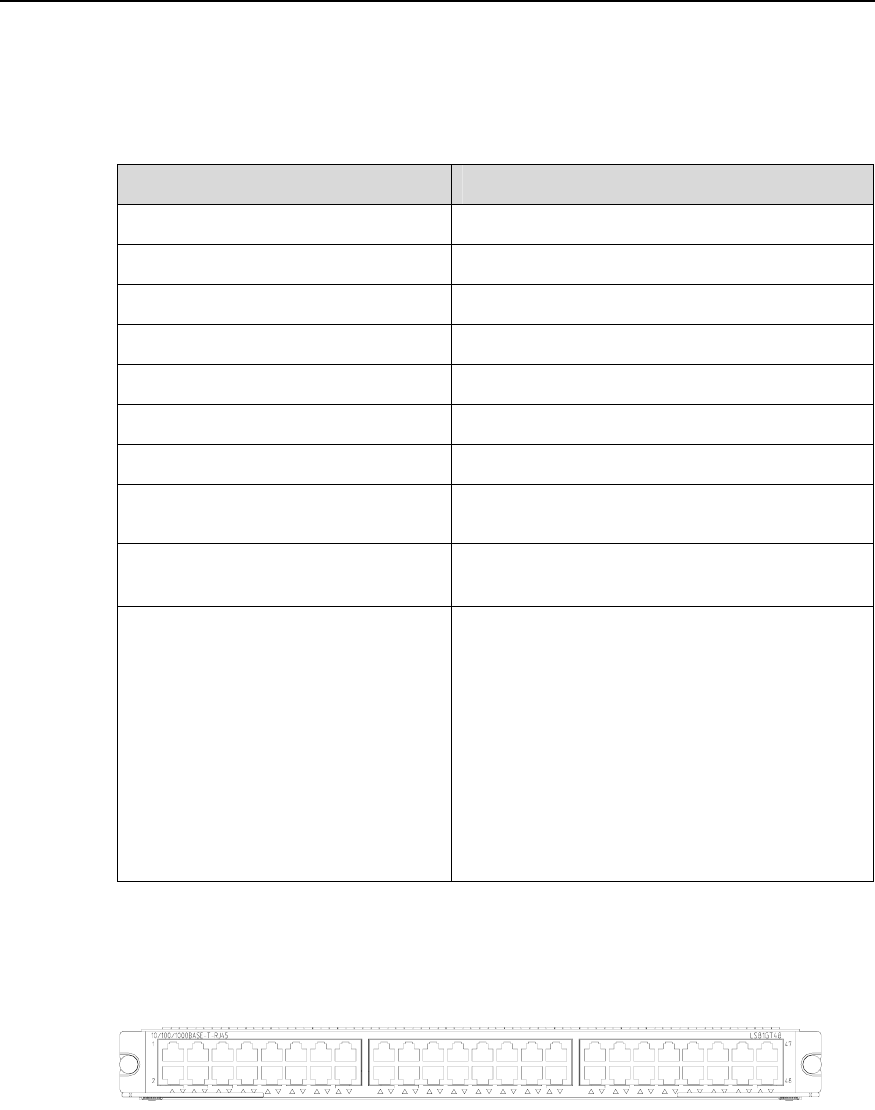

Table 2-14 LS81GT48 specifications
Item LS81GT48
CPU MPC8241, 200 MHz
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (H x W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Max power consumption 70 W
Connector RJ-45
Number of ports 48
Port rate
z 10/100/1000 Mbps half-/full-duplex
z MDI/MDI-X auto-sensing
Matching cable and maximum
transmission distance
Category-5 twisted pair with maximum
transmission distance of 100 m (328 ft)
Supported standard
z IEEE 802.3
z IEEE 802.3u
z IEEE 802.3ab
z IEEE 802.3x
z IEEE 802.1p
z IEEE 802.1D
z IEEE 802.1Q
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
2.8.2 Panel and LEDs
Figure 2-20 LS81GT48 panel
