H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-17
(1) Silkscreen of the LPU name (2) Captive screw
(3) LPU edge (Purple) (4) Ejector lever
(5) Ethernet port LED (6) Ethernet port

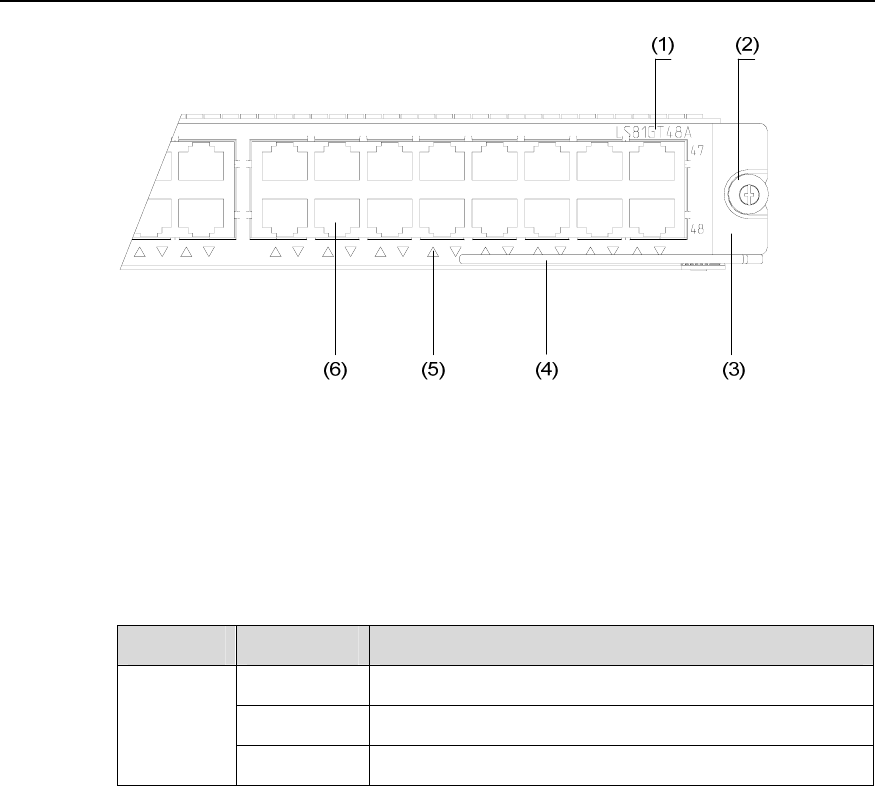

Figure 2-24 Partial amplification of LS81GT48A panel
Every port has a LED. The following table describes the LED state.
Table 2-17 LED state description of LS81GT48A
LED State Description
Off
No link is present.
On
A link is present
LINK/ACT
Blinking
Packets are being transmitted/received on the port.
2.9.3 Matching Cable
The matching cable to the port is category-5 twisted pair with a maximum transmission
distance of 100 m (328 ft).
