H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-18
2.10 LS81T12P

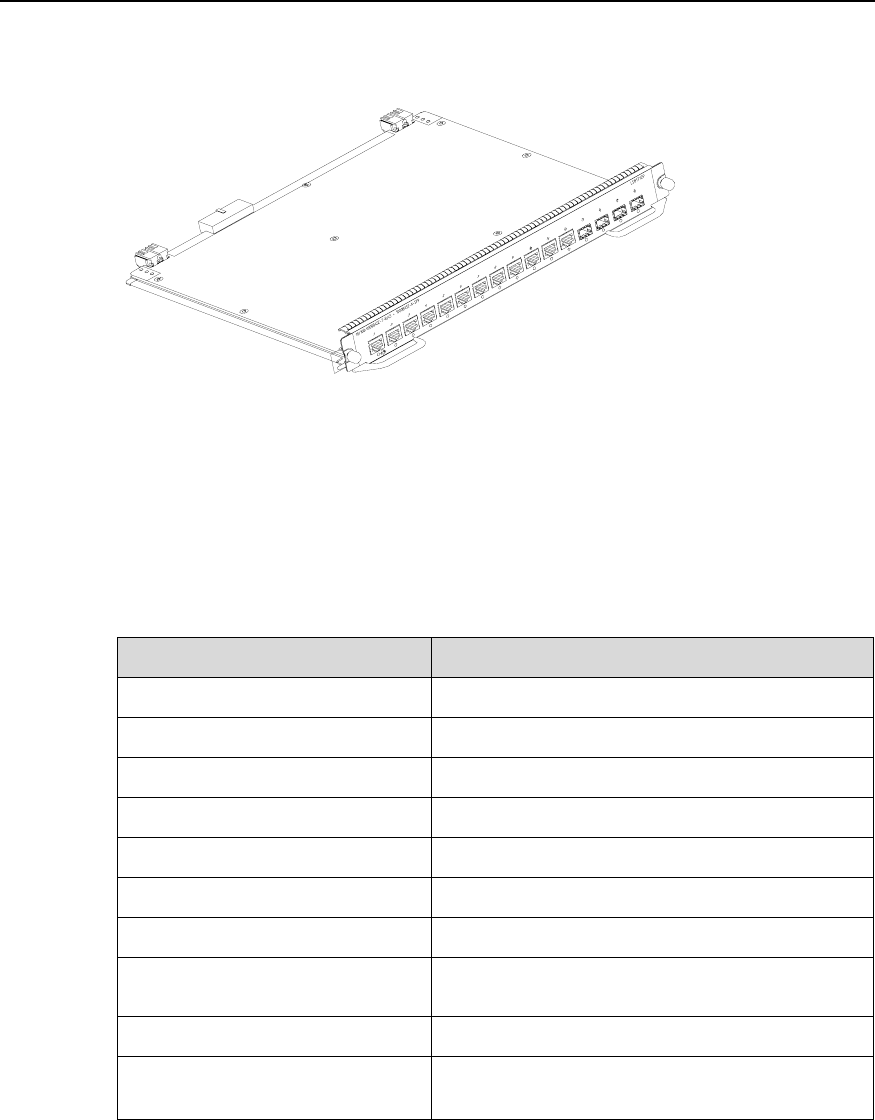

Figure 2-25 LS81T12P appearance
2.10.1 Technical Specifications
This LPU provides 12 x 10/100/1000 Mbps auto-sensing Ethernet electrical ports and
four 1000 Mbps full-duplex SFP ports.
Table 2-18 LS81T12P specifications
Item LS81T12P
CPU MPC8241, 200 MHz
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (H x W x D) 40.1 × 376.7 × 354.5 mm (1.6 × 14.8 × 14 in.)
Max power consumption 33 W
Connector RJ-45, LC
Number of ports 16
Port rate
z 1000 Mbps full-duplex (optical/electrical)
z 10/100 Mbps half-/full-duplex (electrical)
SFP modules Refer to Table 2-20
Matching cable and maximum
transmission distance
Category-5 twisted pair with maximum
transmission distance of 100 m (328 ft)
