H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-21
SFP module
Central
wavelength
Conn
ector
Matching cable
Maximum
transmission
distance
SFP-GE-LH70-SM
1550-CW
1,550 nm LC
9 µm/125 µm single
mode optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-SM
1570-CW
1,570 nm LC
9 µm/125 µm single
mode optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-SM
1590-CW
1,590 nm LC
9 µm/125 µm single
mode optical fiber
cable
70 km (43 mi)
SFP-GE-LH70-SM
1610-CW
1,610 nm LC
9 µm/125 µm single
mode optical fiber
cable
70 km (43 mi)
1000BASE-T-FD-S
FP
— RJ45 — 100 m (328 ft)
II. 12-port 10/100/1000Base-T Ethernet port
The matching cable to Ethernet port is category-5 twisted pair with a maximum
transmission distance of 100 m (328 ft).
2.11 LS81P12T

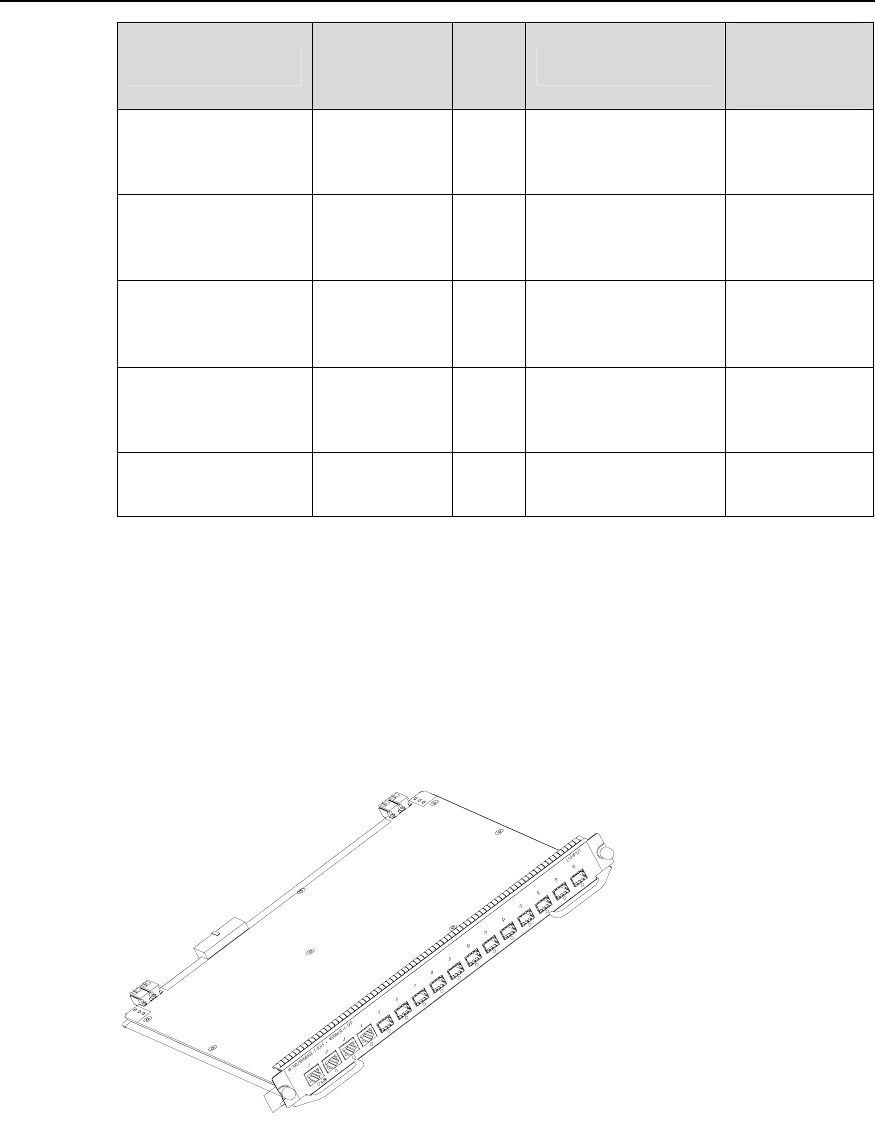

Figure 2-28 LS81P12T appearance
2.11.1 Technical Specifications
This LPU provides 12 x 1000 Mbps full-duplex SFP ports and four 10/100/1000 Base-T
auto-sensing Ethernet ports.
