Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-24
Table 2-23 LS81GP8UB specifications
Item LS81GP8UB
CPU MPC850, 50 MHz
Boot ROM 512 KB
SDRAM 64 MB
Dimensions (H x W x D)
40.1 × 376.7 × 354.5 mm (1.6 × 14.8 ×
14 in.)
Max power consumption 9.5 W
Connector LC
Number of ports 8
Port rate 1000 Mbps / Full-duplex
SFP modules Refer to Table 2-20
Supported standard
z IEEE 802.3
z IEEE 802.3z
z IEEE 802.1p
z IEEE 802.1Q
z IEEE 802.1D
z IEEE 802.3x
z IEEE 802.3ad
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
2.12.2 Panel and LEDs

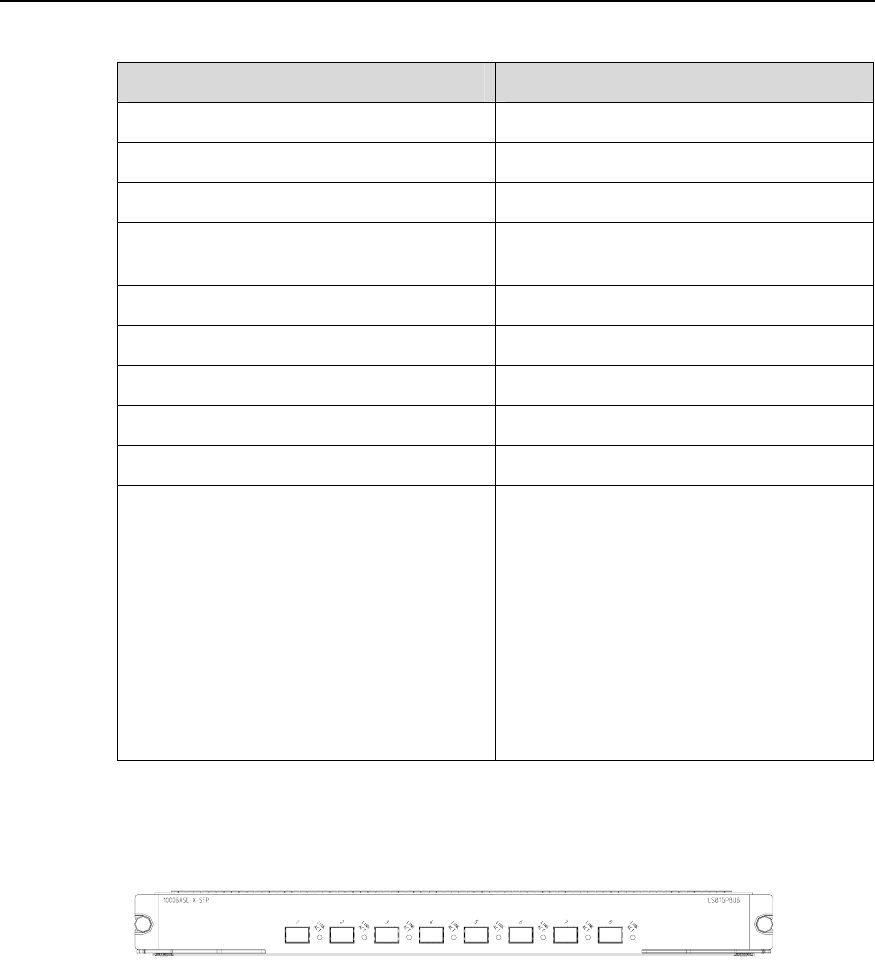

Figure 2-32 LS81GP8UB panel
