Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-25
(1) Interface number (2) Silkscreen of the LPU name
(3) Captive screw (4) LPU edge (Purple)
(5) Ejector lever (6) Interface status LED
(7) SFP interface (Gigabit)

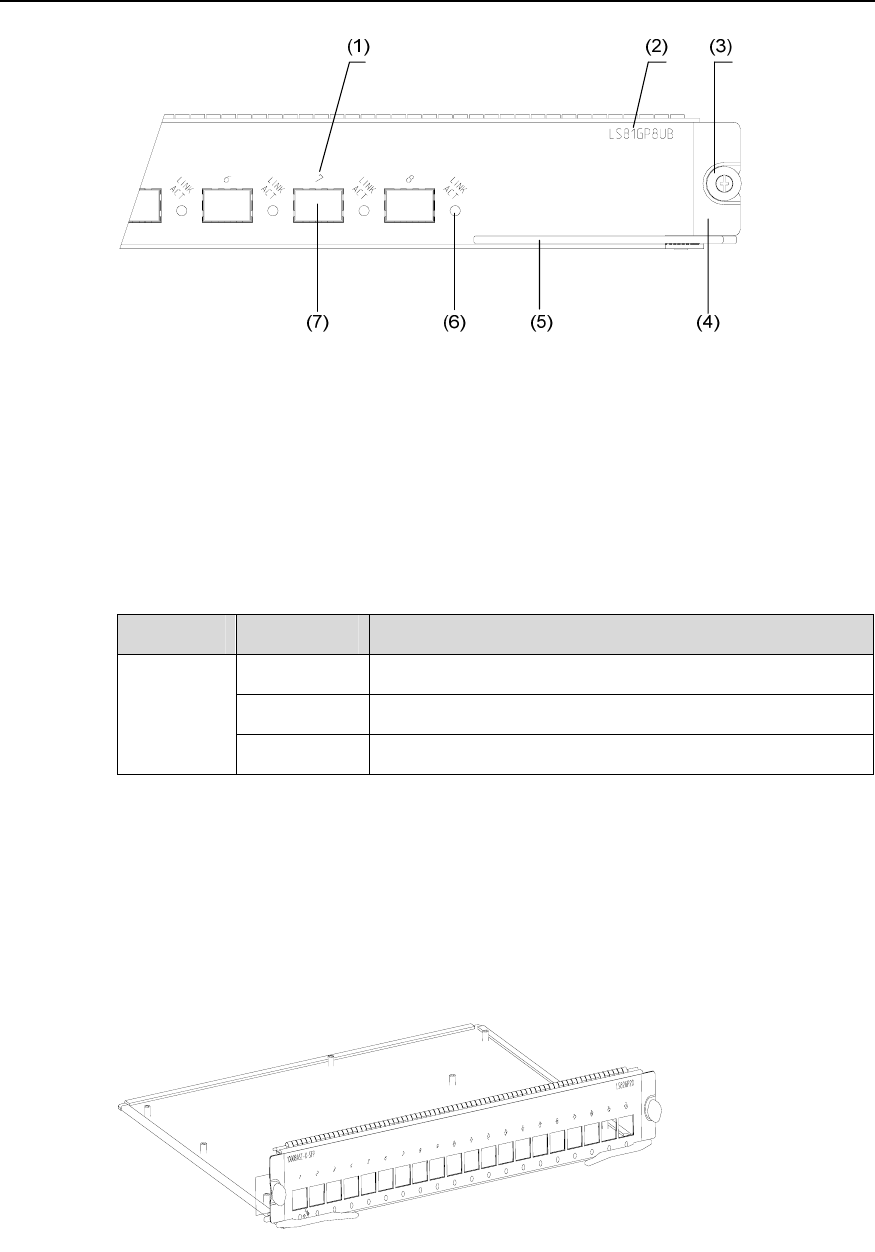

Figure 2-33 Partial amplification of LS81GP8UB panel
The following table describes the LED state.
Table 2-24 LED state description of LS81GP8UB
LED State Description
OFF
No link is present.
ON
A link is present
LINK/ACT
Blinking
Packets are being transmitted/received on the port.
2.12.3 Matching Cable
Refer to Table 2-20.
2.13 LS82GP20
Figure 2-34 LS82GP20 appearance
