Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-27

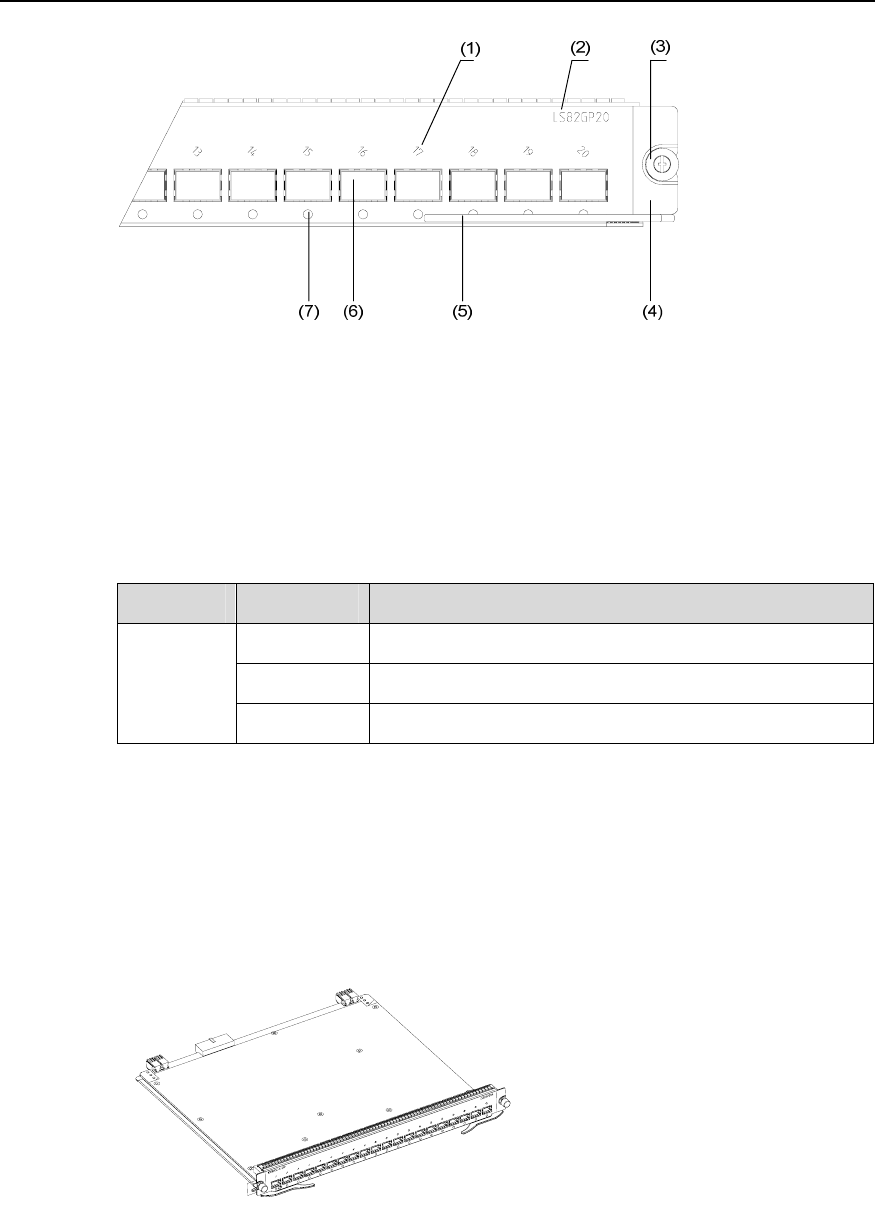

(1) Interface number (2) Silkscreen of the LPU name
(3) Captive screw (4) LPU edge (Purple)
(5) Ejector lever (6) SFP interface (Gigabit)
(7) Interface status LED
Figure 2-36 Partial amplification of LS82GP20 panel
The following table describes the LED state.
Table 2-26 LED state description of LS82GP20
LED State Description
OFF
No link is present.
ON
A link is present
LINK/ACT
Blinking
Packets are being transmitted/received on the port.
2.13.3 Matching Cable
Refer to Table 2-20.
2.14 LS82GP20A
Figure 2-37 LS82GP20A appearance
