Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-28
2.14.1 Technical Specifications
This LPU provides 20 × 1000 Mbps full-duplex SFP ports.

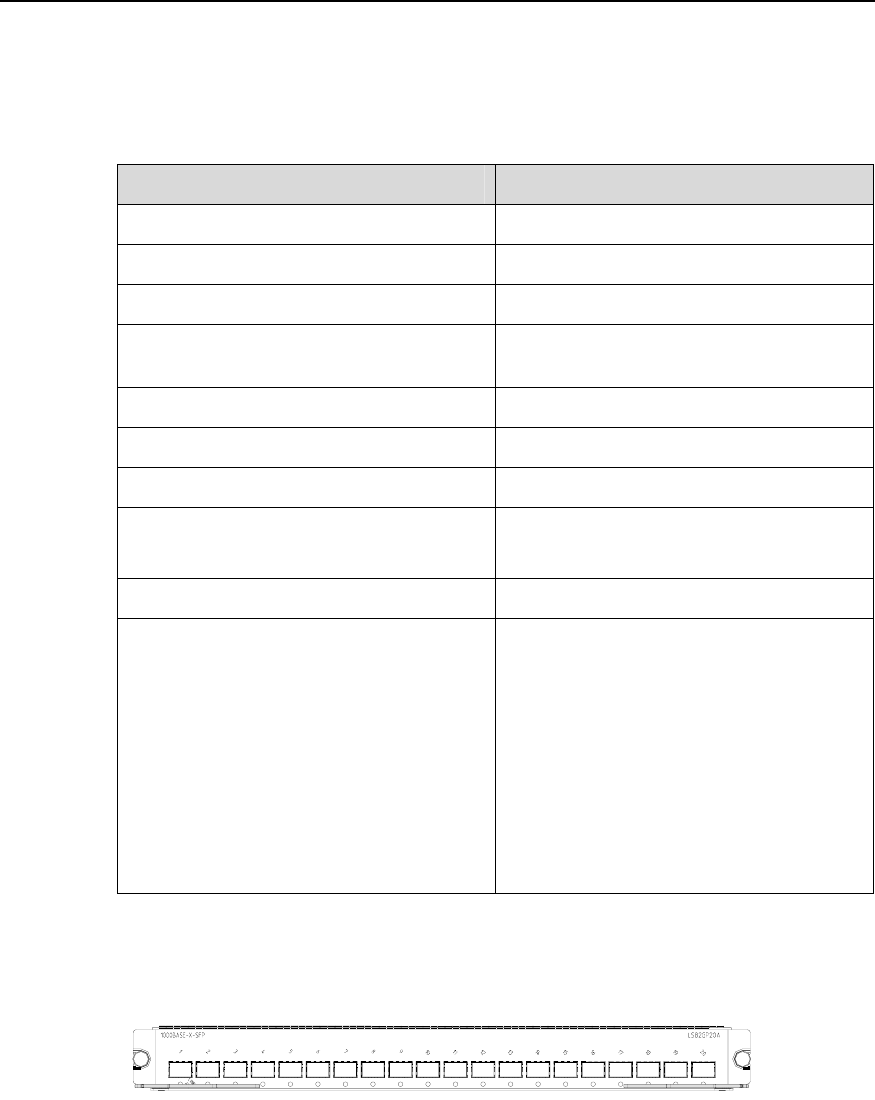

Table 2-27 LS82GP20A specifications
Item LS82GP20A
CPU MPC8241, 200 MHz
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (H x W x D)
40.1 × 376.7 × 354.5 mm (1.6 × 14.8 ×
14 in.)
Max power consumption 35 W
Connector LC
Number of ports 20
Port rate
1000 Mbps
Full-duplex
SFP modules Refer to Table 2-20
Supported standard
z IEEE 802.3
z IEEE 802.3z
z IEEE 802.1p
z IEEE 802.1Q
z IEEE 802.1D
z IEEE 802.3x
z IEEE 802.1X
z IEEE 802.1w
z IEEE 802.3ad
z IEEE 802.1s
2.14.2 Panel and LEDs
Figure 2-38 LS82GP20A panel
