Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-30

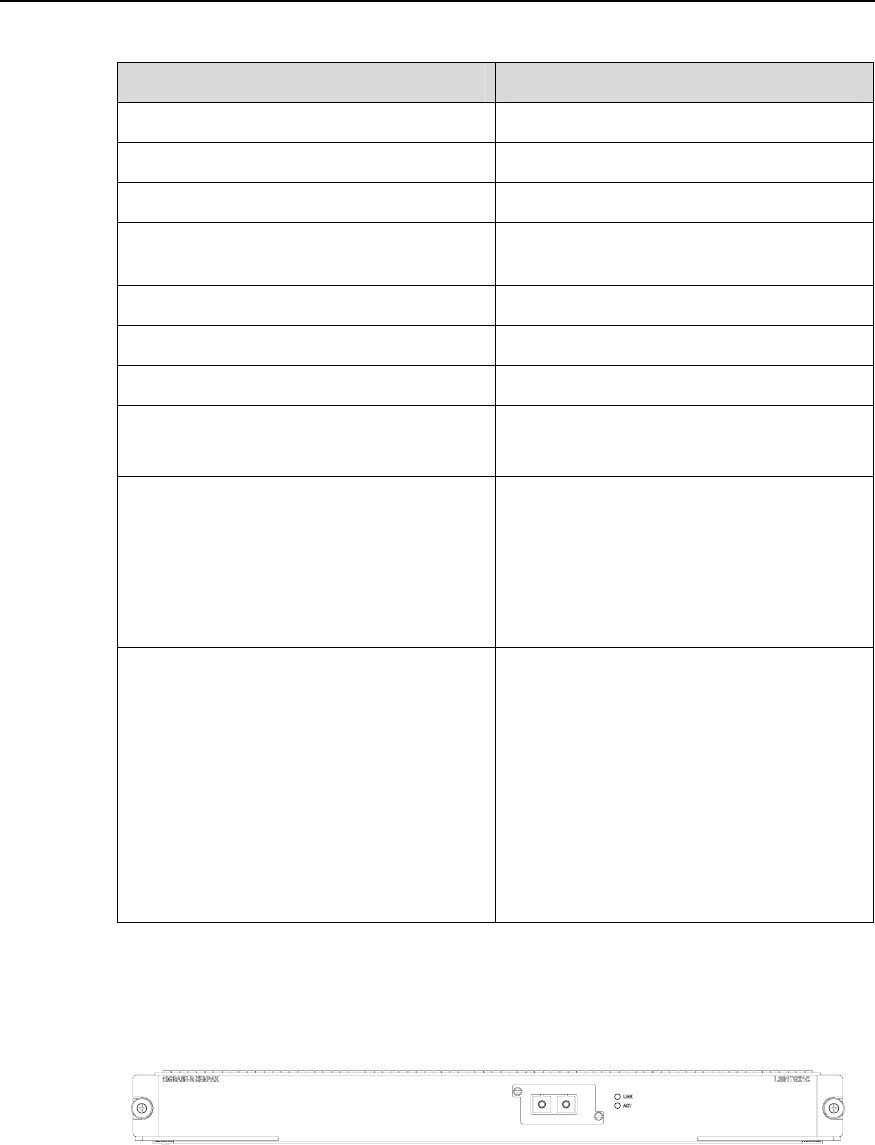

Table 2-29 LS81TGX1C specifications
Item LS81TGX1C
CPU MPC8245, 300 MHz
Boot ROM 512 KB
SDRAM 128 MB
Dimensions (H x W x D)
40.1 × 376.7 × 354.5 mm (1.6 × 14.8 ×
14 in.)
Max power consumption 35 W
Connector SC
Number of ports 1
Port rate
10 Gbps
Full-duplex
XENPAK modules
XENPAK-LX-SM1310 (multimode
optical fiber, 1,310 nm, 10 km [6 mi])
XENPAK-LH40-SM1550 (single mode
optical fiber, 1550 nm, 40 km [24.9 mi])
XENPAK-SX-MM850 (single mode
optical fiber, 850 nm, 300 m [984 ft])
Supported standard
z IEEE 802.3
z IEEE 802.1p
z IEEE 802.1Q
z IEEE 802.1D
z IEEE 802.3x
z IEEE 802.3ad
z IEEE 802.3ae
z IEEE 802.1X
z IEEE 802.1s
z IEEE 802.1w
2.15.2 Panel and LEDs
Figure 2-41 LS81TGX1C panel
