H3C S7502 Ethernet Switch Installation Manual

Installation Manual
H3C S7502 Ethernet Switch Chapter 1 Product Overview
1-1
Chapter 1 Product Overview
1.1 General Information
1.1.1 Preface
H3C S7500 Series Ethernet Switches are modular, large-capacity Layer 2/3 Ethernet
switches that support wire-speed forwarding. The S7500 series include S7502, S7503,
S7506, and S7506R.
z The S7503, S7506, and S7506R are designed to operate at the convergence layer
of IP metropolitan area networks (MANs) and at the core layer of small to
medium-sized enterprise networks and campus area networks.
z The S7502 is designed to operate at the core layer of small to medium-sized
enterprise networks and at the convergence layer and access layer of IP MANs.
The S7502 is a high-capacity, cost-effective Layer 3 Ethernet switch. It provides
high-density GE/FE ports, as well as modularized components that enable you to
configure flexibly according to your specific needs.

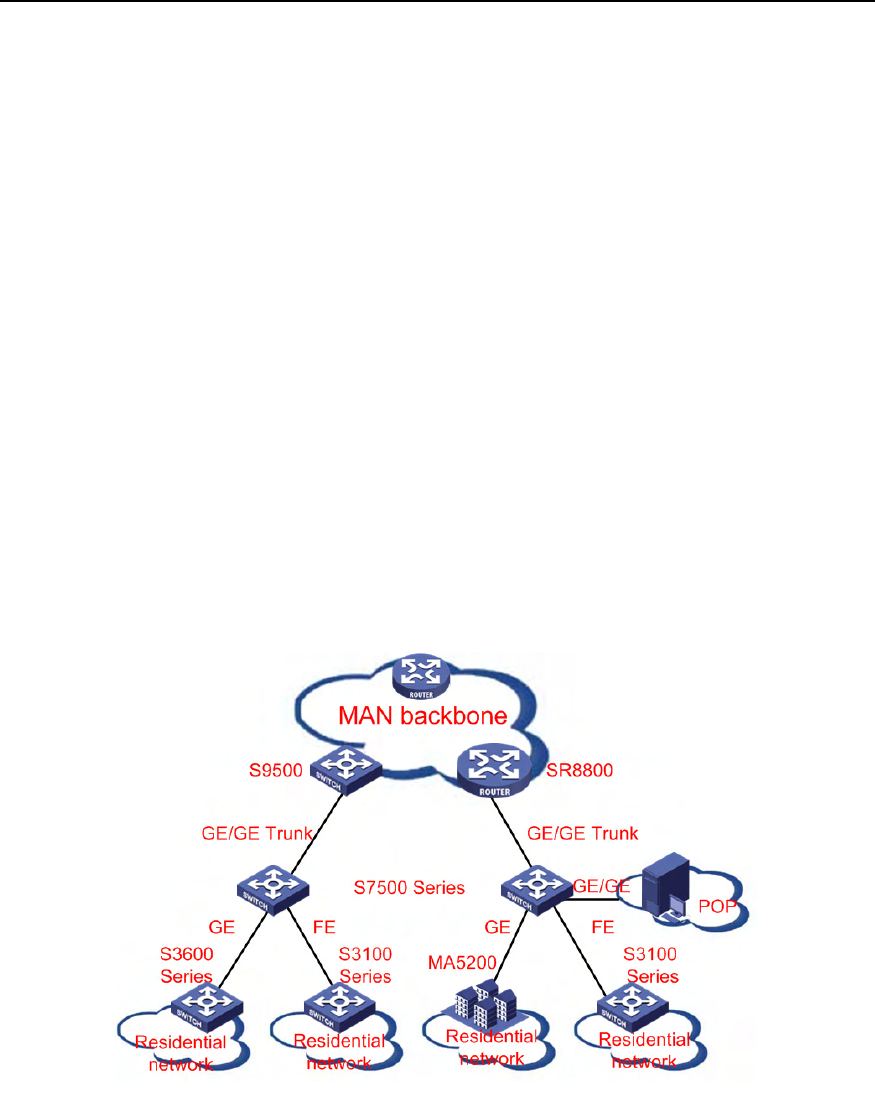

Figure 1-1 S7502 in a MAN
The S7502 supports 1+1 AC power redundancy backup, and provides one switching
and routing processing unit (SRPU) slot and one line processing unit (LPU) slot. Both
the SRPU and the LPU can provide high-density service ports.
