Installation Manual
H3C S7502 Ethernet Switch Chapter 2 Line Processing Units
2-32
2.16 LS81VSNP

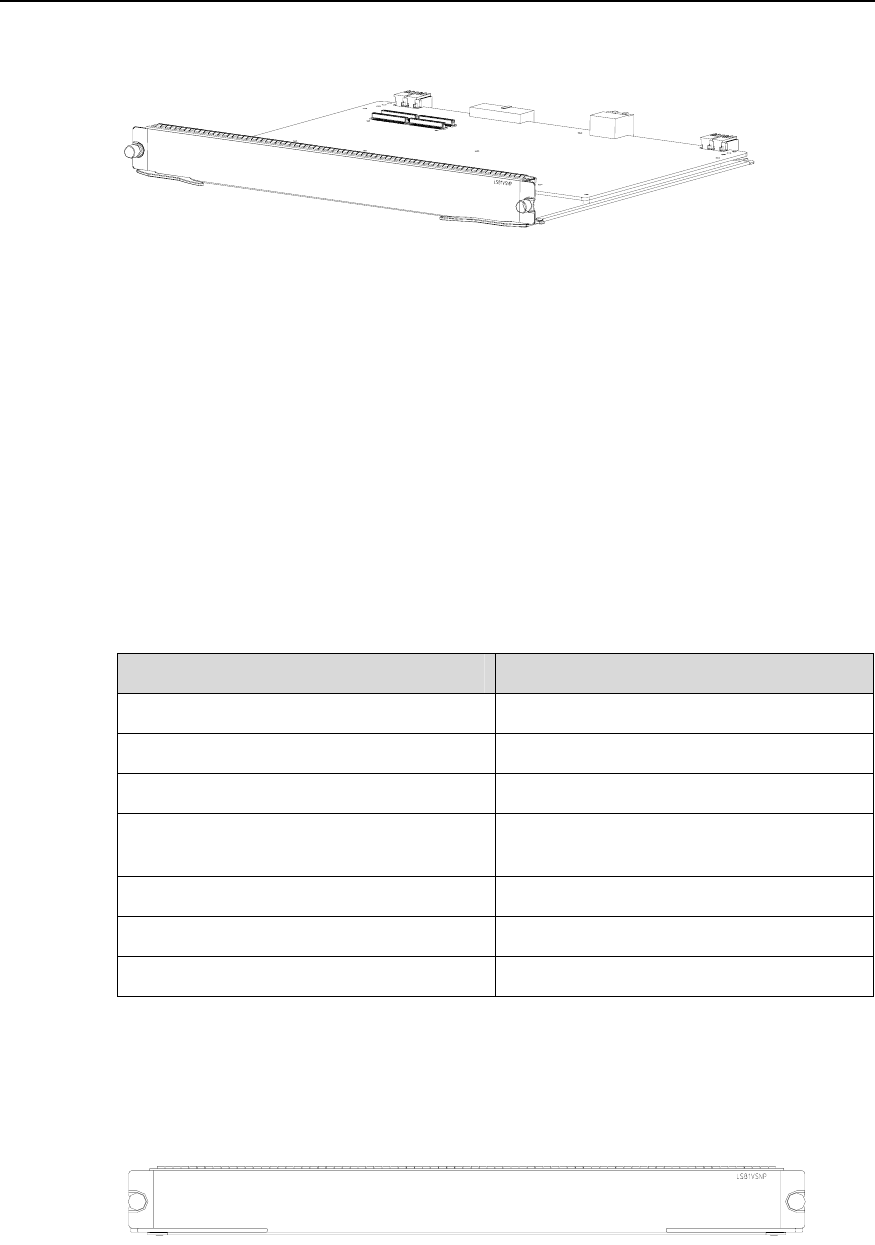

Figure 2-43 LS81VSNP appearance
2.16.1 Technical Specifications
The LS81VSNP supports XGbus high speed bus, possesses high-performance NP
(Network Processor) and CPU, and can provide the following features by operating
with other LPUs:
z Policy routing
z Network address translation (NAT)
z Netstream
This card provides no port to the outside.
Table 2-32 LS81VSNP specifications
Item LS81VSNP
CPU MPC755, 350 MHz
Boot ROM 512 KB
SDRAM 256 MB
Dimensions (H x W x D)
40.1 × 376.7 × 354.5 mm (1.6 × 14.8 ×
14 in.)
Max power consumption 100 W
Connector —
Number of ports 0
2.16.2 Panel and LEDs
Figure 2-44 shows the LS81VSNP panel:
Figure 2-44 LS81VSNP panel
The LS81VSNP does not provide any interface.
