H3C S7502 Ethernet Switch Chapter 4 Hardware Installation
4-1
Chapter 4 Hardware Installation
The S7502 is designed for indoor application and must be fixed when applied.
4.1 Confirming the Installation Preparations
z Make sure that you have read Chapter 3 carefully.
z All requirements introduced in Chapter 3 have been met.
4.2 Installation Flowchart

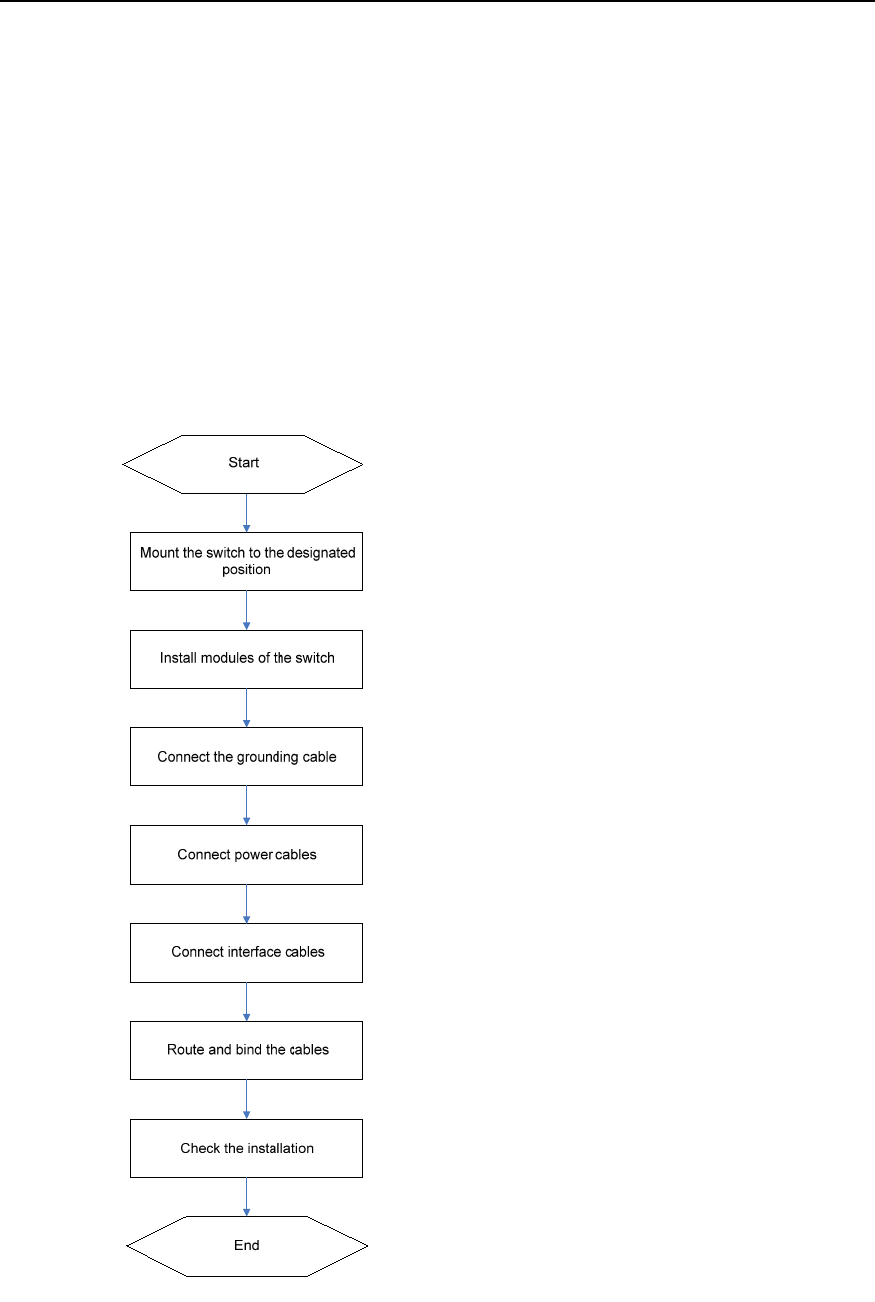

Figure 4-1 Installation flowchart of the switch
