Introduction - Using the Web Management Interface - The Device View
http://support.3com.com/infodeli/tools/switches/4400/DHA1720-3AAA08/htm/introduction/web/deviceview.htm[11/15/2010 3:43:32 PM]
Introduction
Using the Web Interface
The Device View
Click the Device View button on the
Toolbar to access the Device View. This view allows
you to perform configuration and monitoring on a system-wide, unit-wide or port-wide
basis.

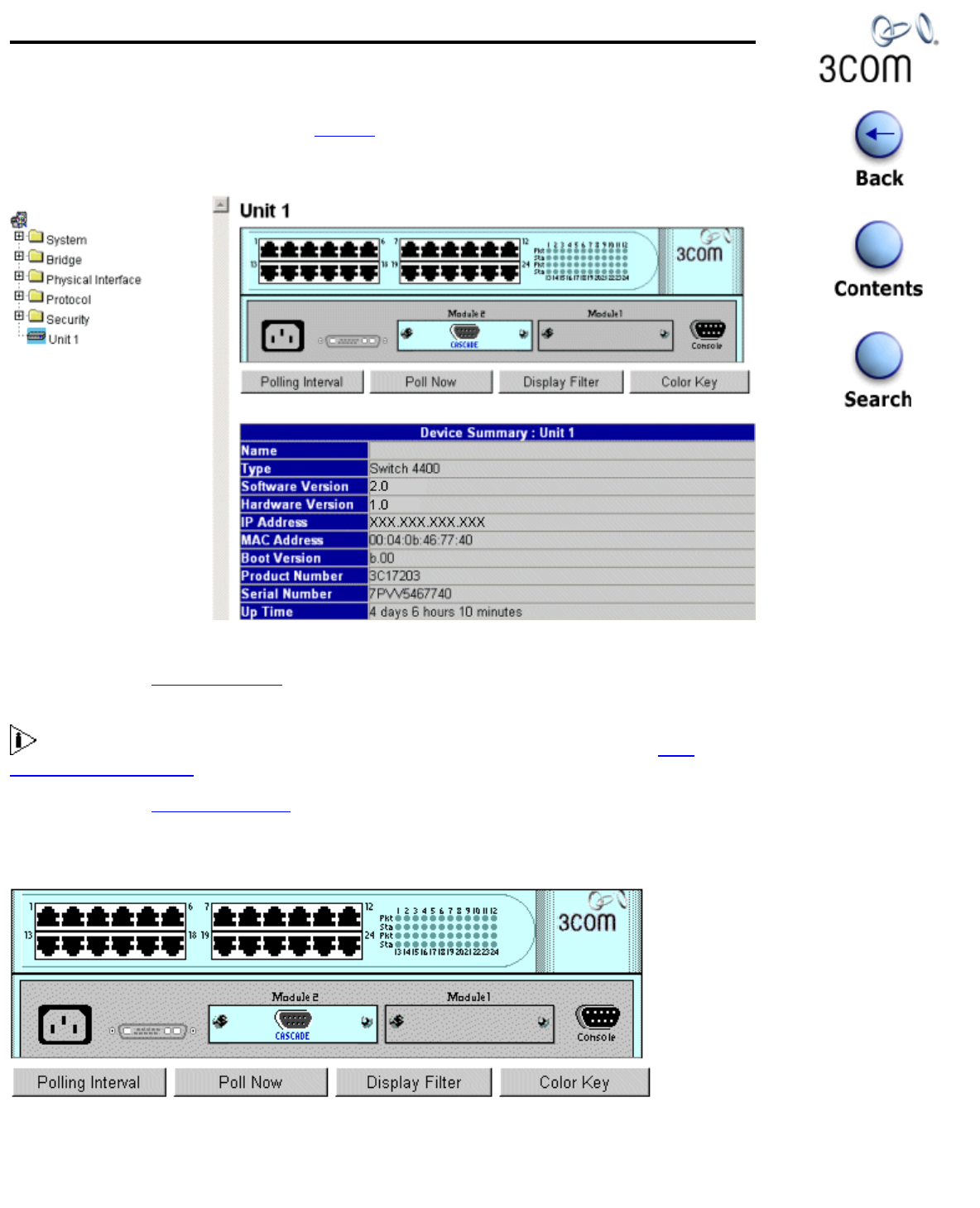

For example purposes only, this graphic shows a Switch 4400 (24 port).
The Device View Navigation Tree is displayed on the left side of the browser window and
allows you to perform all operations for the Stack.
For more information about the operations that you can perform, see the Web
Interface - Operations page.
The Device View
Information Area is displayed on the right side of the browser and
contains the device mimic and the Device Summary table.
Device Mimic
For example purposes only, this graphic shows a Switch 4400 (24 port).
The device mimic is an interactive representation of the currently selected unit. It is
periodically updated to reflect changes in the unit, particularly changes made to the
status of its ports. You can also perform certain operations by clicking on parts of the
