Web Interface
Physical Interface Ethernet Statistics
Displaying Unit Statistics
You can display a range of statistics for all the ports on the Switch using the Statistics
window.
To access the window:
1. Click Device View on the Toolbar.
2. Select Physical Interface -> Ethernet -> Statistics in the Navigation Tree;
or
Click the relevant port on the Switch graphic and select Statistics.
If you want to display the statistics for more than one port at the same time,
you must access the Statistics window through the Navigation Tree. Clicking a port
on the Switch graphic will only allow you to display the statistics for that particular
port.
If you access the Statistics window through the Navigation Tree, you are prompted
to enter the port numbers, port ranges and/or port labels that you wish to
configure.
You must separate the values that you enter with commas.

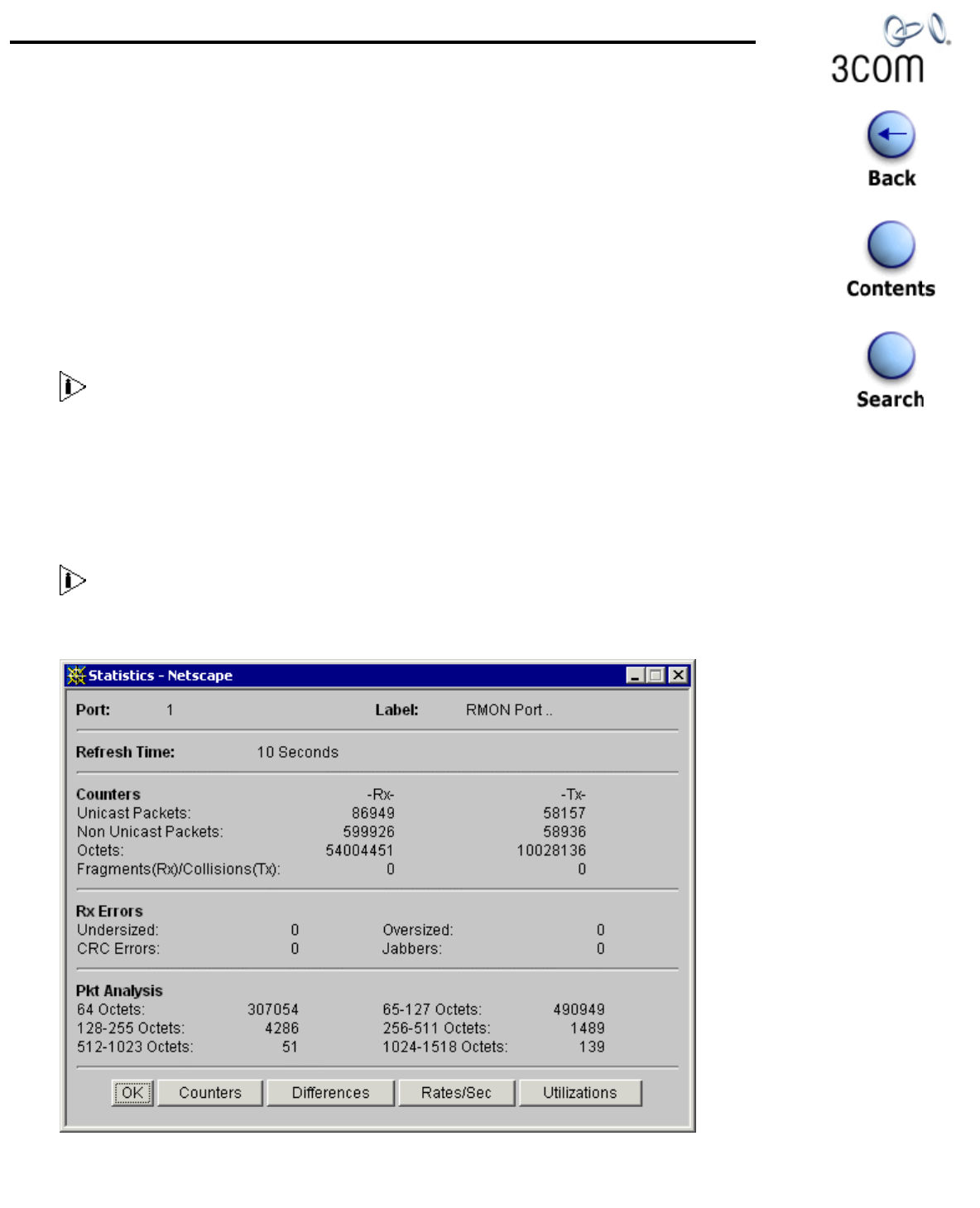

3. The following window is displayed for a single port.
You can click on Counters, Differences, Rates/Sec or Utilitizations to change the type
of statistics displayed for the port selected (Counters is the default screen display).
