Web Management Interface - System Control Software Upgrade
http://support.3com.com/infodeli/tools/switches/4400/DHA1720-3AAA08/htmweb/controlsoftwareupgrade.htm[11/15/2010 3:45:18 PM]
For example, if your workstation's IP address is 192.168.1.40, and a subnet
mask of 255.255.255.0, and your Switch unit is configured with an IP
address of 192.168.1.x, and a subnet mask of 255.255.255.0, then your
upgrade should be successful.
Or,
b. Have a route between the Switch and the workstation.
CAUTION: Ensure that the Switch port connected to the TFTP Server belongs to the
Default VLAN (VLAN 1). The TFTP Server can only upgrade the management software of
the Switch if it is connected to the Switch by the Default VLAN or if an IP route exists
between the Default VLAN and the VLAN the TFTP Server belongs to.
Performing a TFTP upgrade via the Web Interface
1. Open your web browser and enter the Switch IP address in the Address or
Location field (press Enter).
2. Log into the Switch.
The default user name is admin (lower case). There is no default password (press
Enter).
3. Click Device View on the Toolbar.
4. Select System -> Control -> Software Upgrade in the Navigation Tree.

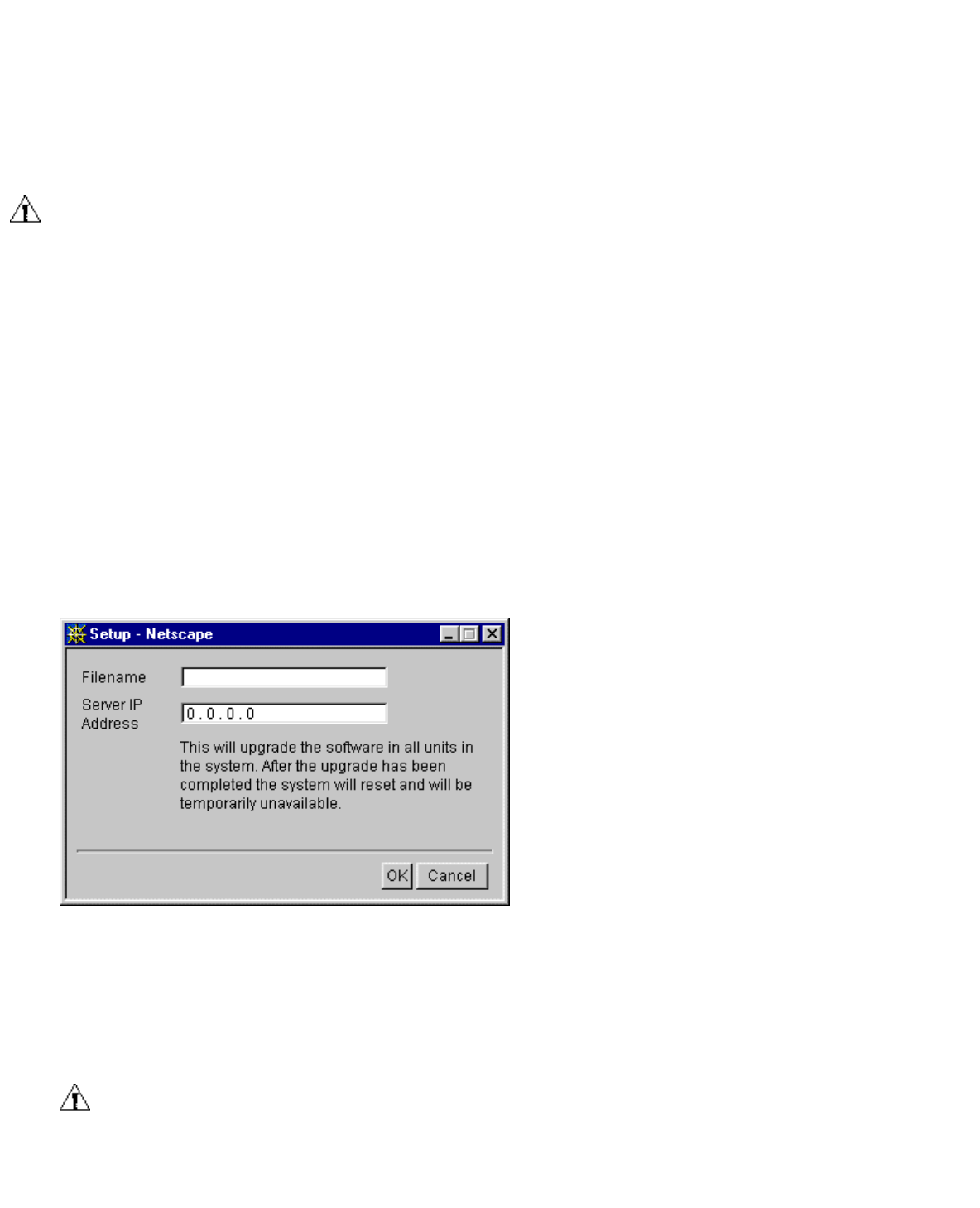

5. The Setup window is displayed.
6. Enter the name of the software upgrade file in the Filename field. The filename
format is:
nnnxx_yy.bin
where nnn is the prefix of Switch and xx_yy is the version of management
software.
CAUTION: You must use the nnnxx_yy.bin format, otherwise the upgrade will
fail.
7. Enter the IP address of the TFTP Server in the Server IP Address field. This is the
IP address of the workstation running the TFTP Server application.
