Hardware Replacement Procedures
Replacing the Compact Flash
The following is the procedure for replacing the compact flash in the module.
The module may be removed while the switch is powered on. The numbers in
Figures 5a and 5b correspond to the step numbers below.
Before removing the module to
replace the CF, it is recommended that you
first shut down the module, if necessary. See “Shutting Down the Module” on
page 5.
1. Using either a flat-bladed or Torx T
-10 screwdriver loosen the retaining
screws securing the module.
2. Using the extractor handles, pull the mo
dule out from the slot and turn
it over. In the meantime, if the chassis is still operational, use a slot cover
to cover this slot, to ensure proper cooling.
1.
Retaining Screws
2.
Extractor Handles

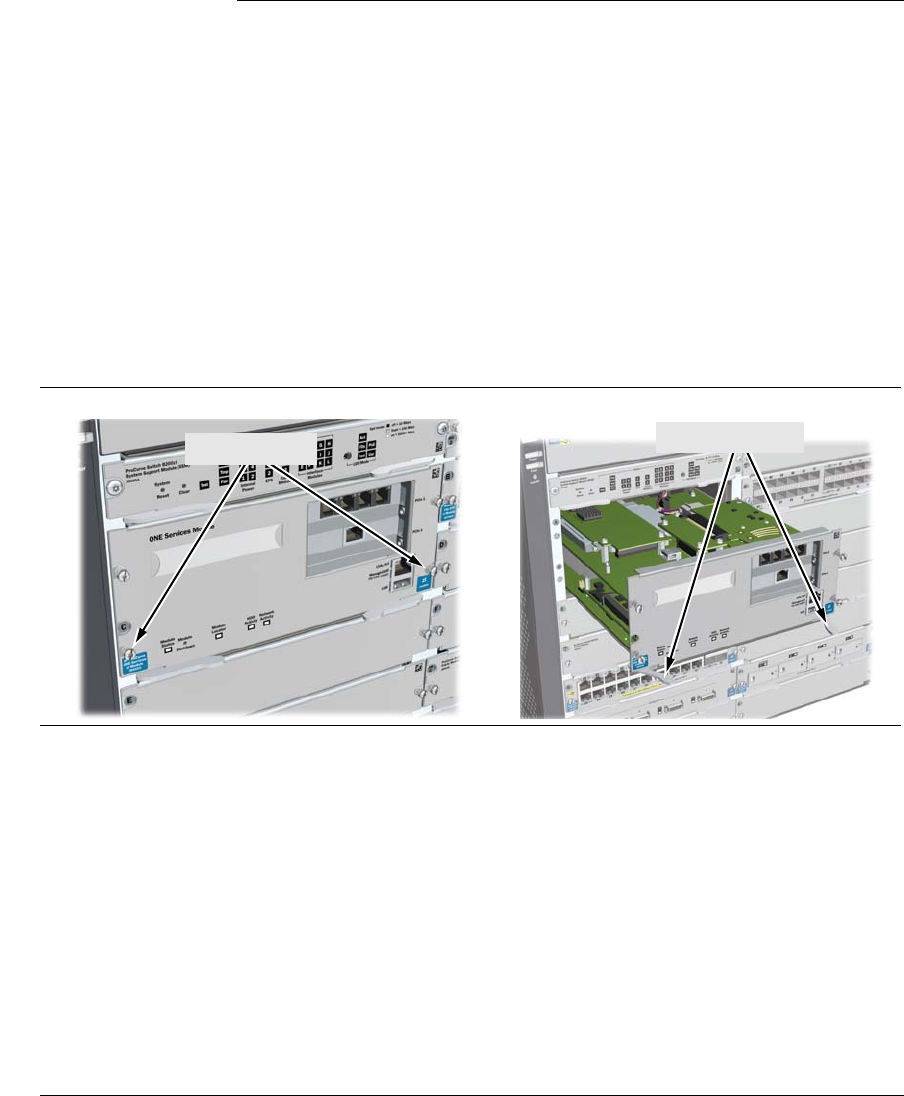

Figure 5a. Steps for Replacing the Module’s Compact Flash
