Hardware Replacement Procedures
3. Slide out the old compact flash by applying slight pressure to the top of
the compact flash.
4. Position the new compact flash properly an
d slide it in being careful not
to bend any connector pins.
3. 4.

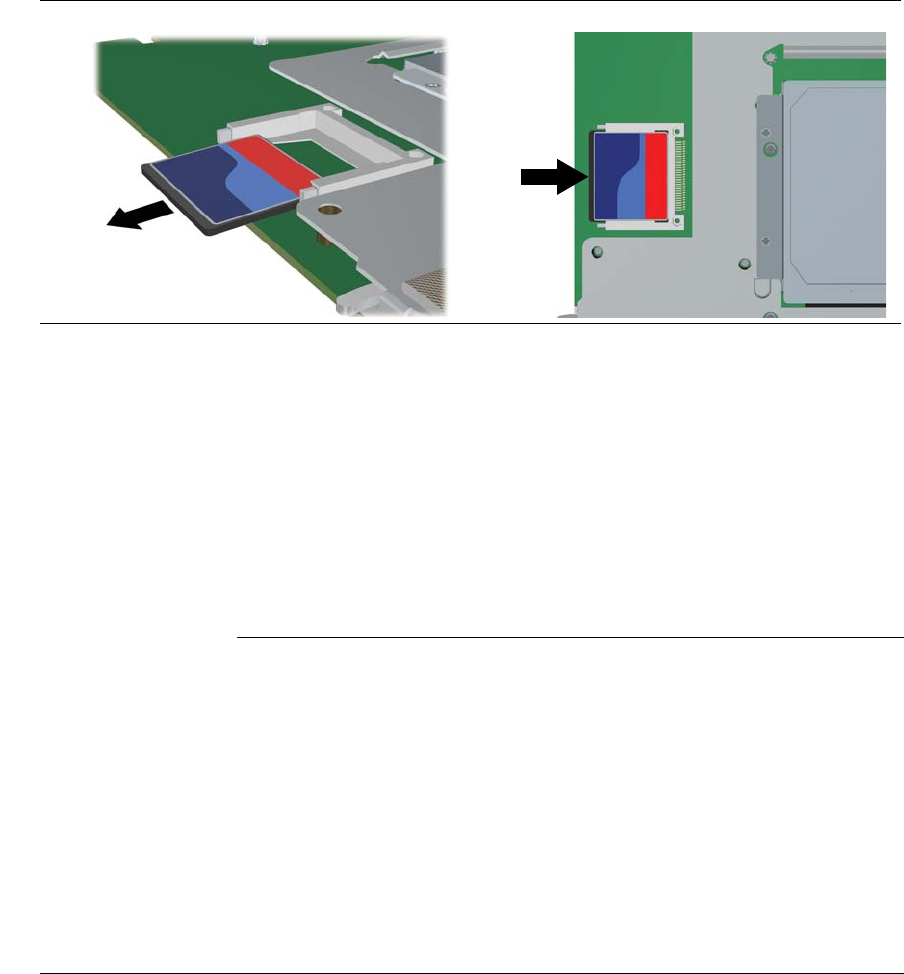

Figure 5b. Steps for Replacing the Module’s Compact Flash
5. If applicable, remove the cover from the slot where the module will be
re
-installed. Re-install the module into the switch.
6. Use an equal amount of pressure and push both extractor handles closed
to completel
y seat the module.
7. Tighten the retaining screws.
8. Now refer to “Restoring Product Operation” on pa
ge 12 for the next steps
to restore full software operation of y
our Advanced or Extended Services
zl Module product. Look for the section that applies to your product, and
“After CF Replacement”.
Replacing the Module
Your replacement Advanced or Extended Services Module will not have an
HDD or a CF installed in it. Remove those components from the faulty module
and install them into the replacement module.
It is highly recommended that the faulty module be shutdown before replacing
it. See “Shutting Down the Module” on page 5.
