113

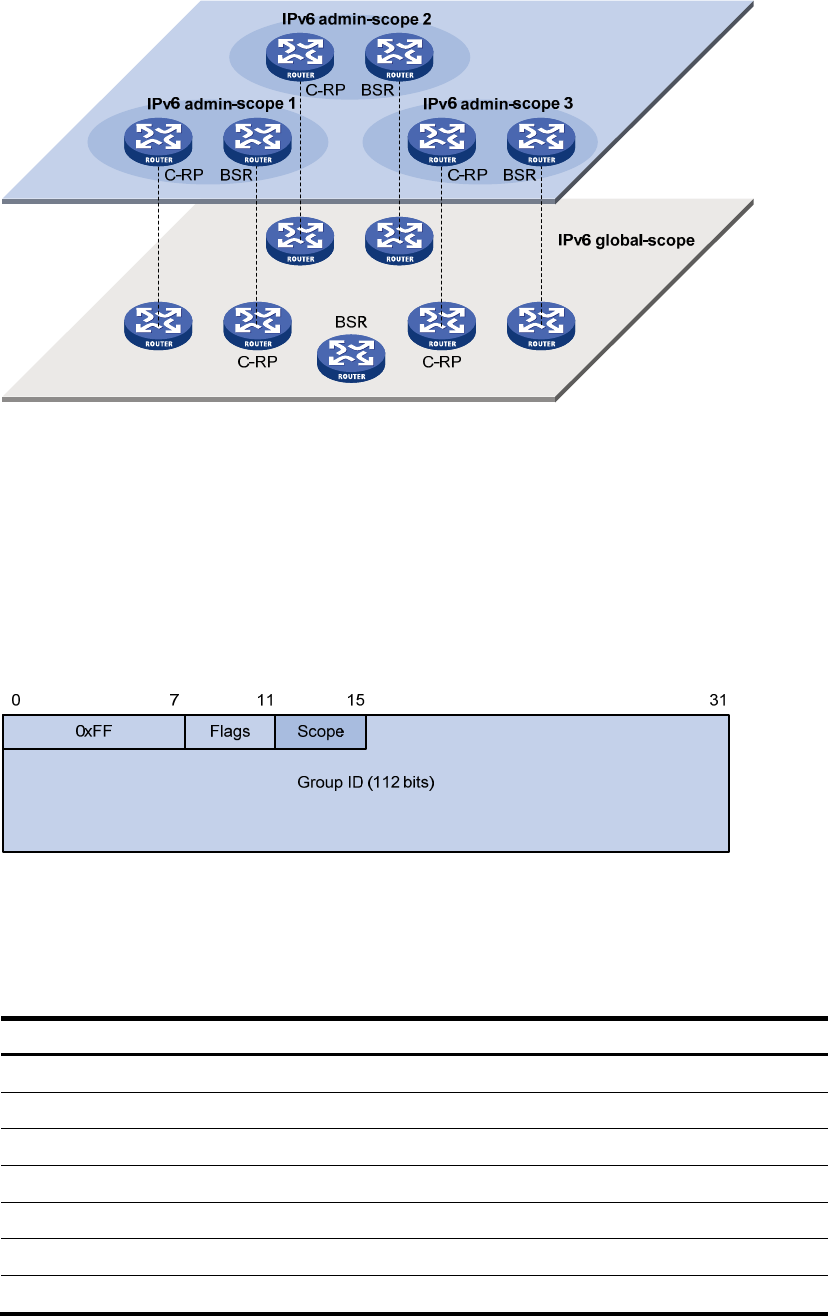

Figure 73 Relationship in view of geographical locations

As shown in Figure 73, for the IPv6 multicast groups with the same scope field value, the IPv6

admin-scoped zones must be geographically separated and isolated. The IPv6 global-scoped

zone includes all routers in the IPv6 PIM-SM domain. IPv6 multicast packets that do not belong to

any IPv6 admin-scoped zones are forwarded in the entire IPv6 PIM-SM domain.

• In view of the scope field values

In terms of the scope field values, the scope field in an IPv6 multicast group address shows which

zone the IPv6 multicast group belongs to.

Figure 74 IPv6 multicast address format

An IPv6 admin-scoped zone with a larger scope field value contains an IPv6 admin-scoped zone

with a smaller scope field value. The zone with the scope field value of E is the IPv6 global-scoped

zone. Table 14 lists th

e possible values of the scop

e field.

Table 14 Values of the Scope field

Value Meanin

Remarks

0, F Reserved N/A

1 Interface-local scope N/A

2 Link-local scope N/A

3 Subnet-local scope IPv6 admin-scoped zone.

4 Admin-local scope IPv6 admin-scoped zone.

5 Site-local scope IPv6 admin-scoped zone.

6, 7, 9 through D Unassigned IPv6 admin-scoped zone.
