115

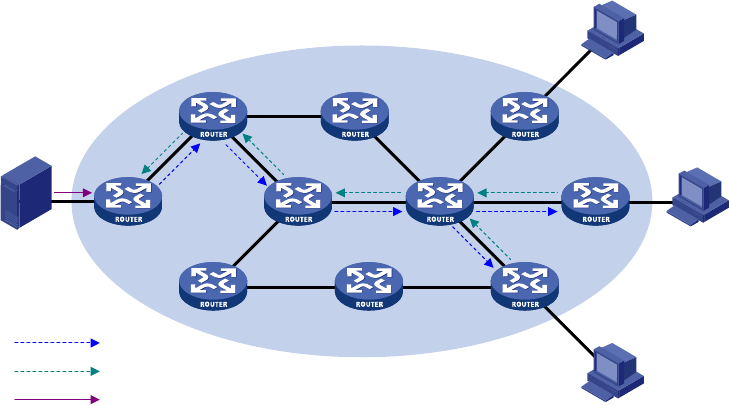

Figure 75 Building an SPT in IPv6 PIM-SSM

As shown in Figure 75, Host B and Host C are IPv6 multicast information receivers. They send an MLDv2

report message to the respective DRs to announce that they are interested in the information about the

specific IPv6 multicast source S and that sent to the IPv6 multicast group G.

The DR that has received the report first determines whether the IPv6 group address in this message falls

in the IPv6 SSM group range and then does the following:

• If the IPv6 group address in the message is not in the IPv6 SSM group range, the IPv6 PIM-SSM

model is built. The DR sends a channel subscription message hop-by-hop toward the IPv6 multicast

source S.

An (S, G) entry is created on all routers on the path from the DR to the source. An SPT is thereby

built in the network, with the source S as its root and receivers as its leaves. This SPT is the

transmission channel in IPv6 PIM-SSM.

• If the IPv6 group address in the message is not in the IPv6 SSM group range, the receiver-side DR

sends a (*, G) join message to the RP, and the source-side DR registers the IPv6 multicast source.

In IPv6 PIM-SSM, the term "channel" refers to an IPv6 multicast group, and the term "channel

subscription" refers to a join message.

Relationship among IPv6 PIM protocols

In an IPv6 PIM network, IPv6 PIM-DM cannot work with IPv6 PIM-SM or IPv6 PIM-SSM. However, IPv6

PIM-SM, and IPv6 PIM-SSM can work together. For more information about MLD SSM mapping, see

"MLD SSM mapping."

Protocols and standards

• RFC 3973, Protocol Independent Multicast-Dense Mode(PIM-DM):Protocol Specification(Revised)

• RFC 4601, Protocol Independent Multicast-Sparse Mode (PIM-SM): Protocol Specification (Revised)

• RFC 3956, Embedding the Rendezvous Point (RP) Address in an IPv6 Multicast Address

• RFC 5059, Bootstrap Router (BSR) Mechanism for Protocol Independent Multicast (PIM)

Source

Server

Host A

Host B

Host C

Receiver

IPv6 multicast packets

SPT

Subscribe message
