Hardware Installation
Install the Extended Services zl Module
Installation Steps
1. Use a Torx T-10 or flat-bladed screwdriver to unscrew the screws in the
cover plates over slots A and C, where you will install the Extended
Services zl Module. Note that the module occupies two slots. Remove the
cover plates from both slots and store them for possible future use.
2. Hold the module by its bulkhead, taking care not to touch the metal
connectors or components on the board.
3. Open the extractor handles.
4. Insert the module, aligning with the guides in the slots, and slide it into
the slots until it is fully inserted.
5. Once the module is fully inserted, use the extractor handles to seat it
completely.
6. Tighten the screws.

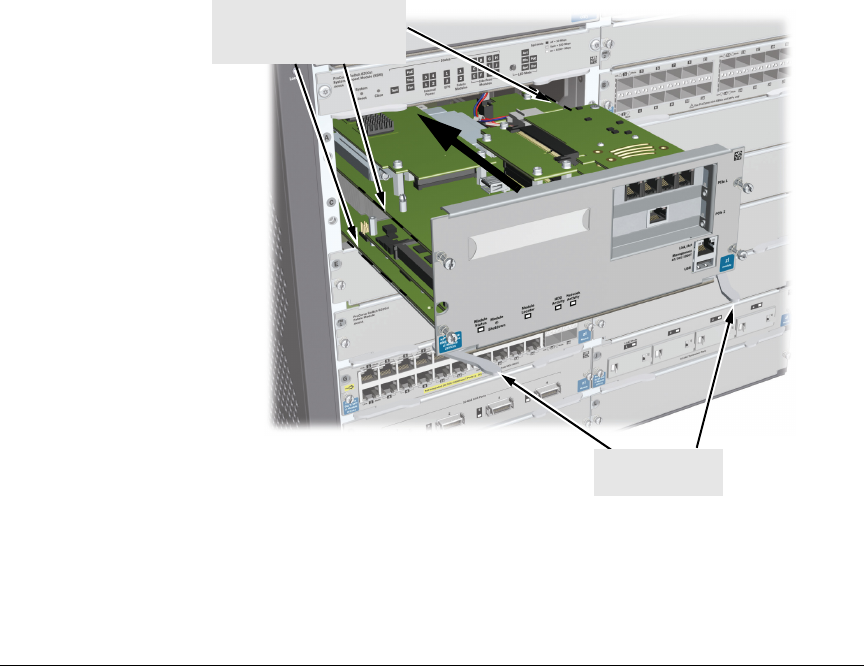

Figure 2-4. Module being installed
Insert module into the guides
and slide in until fully
inserted.
Open extractor
handles.
