Page 127
Because our monitor mode TMS zl Module will require Internet access to get signatures,
we need to specify the default gateway that points to the TMS zl Module in routing
mode. The monitor mode TMS zl Module will be configured to use internal port 2 for

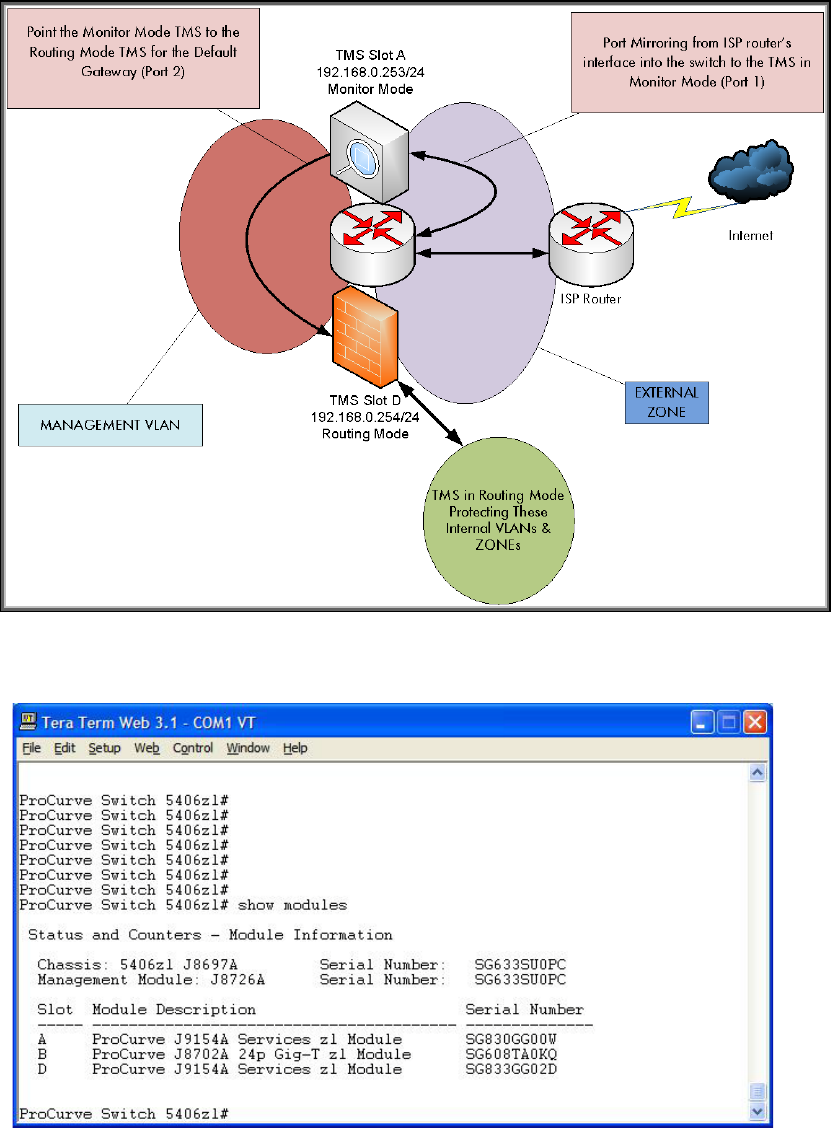

management and port 1 for monitoring. This diagram illustrates how this will be
configured.
Figure 28
Before going further, let’s confirm the modules that are in our 5406.
