Page 128

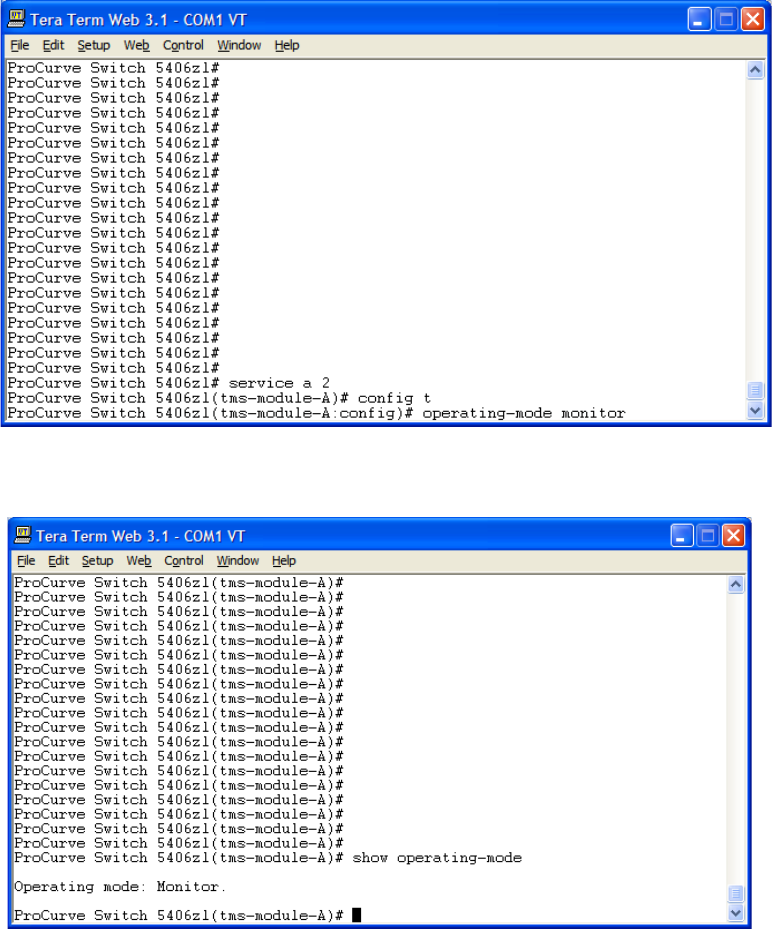

Next, let’s change the operating mode of the TMS zl Module in Slot A to “monitor”.
This will require a reboot of this TMS zl Module. The default operating mode of the
TMS zl Module is “routing”.
Once rebooted, let’s double check the operating mode. As we can see, it is in monitor.
We can now begin our configuration.
