Page 133

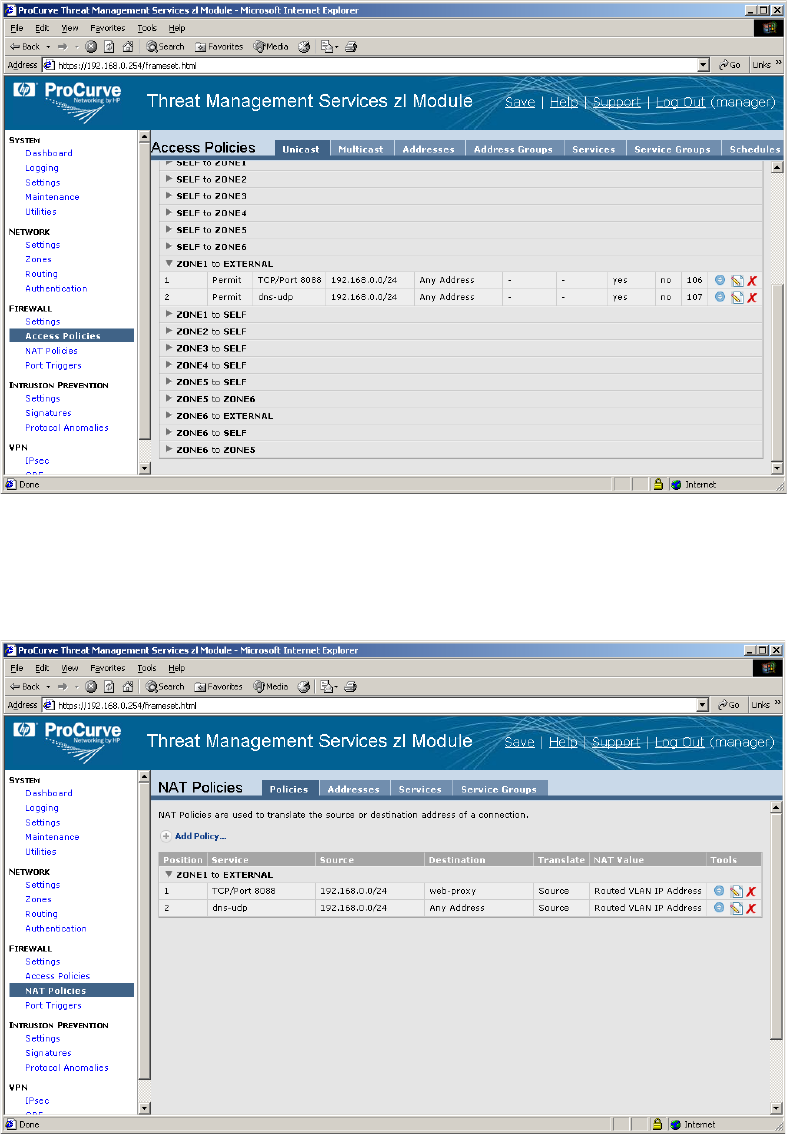

Moving to the TMS zl Module in routing mode, we will need to setup an access policy
that allows the monitor mode TMS zl Module to access the Internet. We could make this
access policy more secure by being very specific and limiting it to just the IP address of
the TMS zl Module. This access policy specifies the management VLAN network.
Because the management VLAN is a private address space, we also need to translate
these private addresses to public addresses, so we need to add a couple of NAT policies.
This is also a good time to save our work.
