Page 135
Now that our monitor mode TMS zl Module ready to do work, we need to give it a traffic
feed to analyze. We are interested in traffic coming from the ISP router. For this
example, Internet traffic is shown coming in on port B24 which is assigned to VLAN 5.

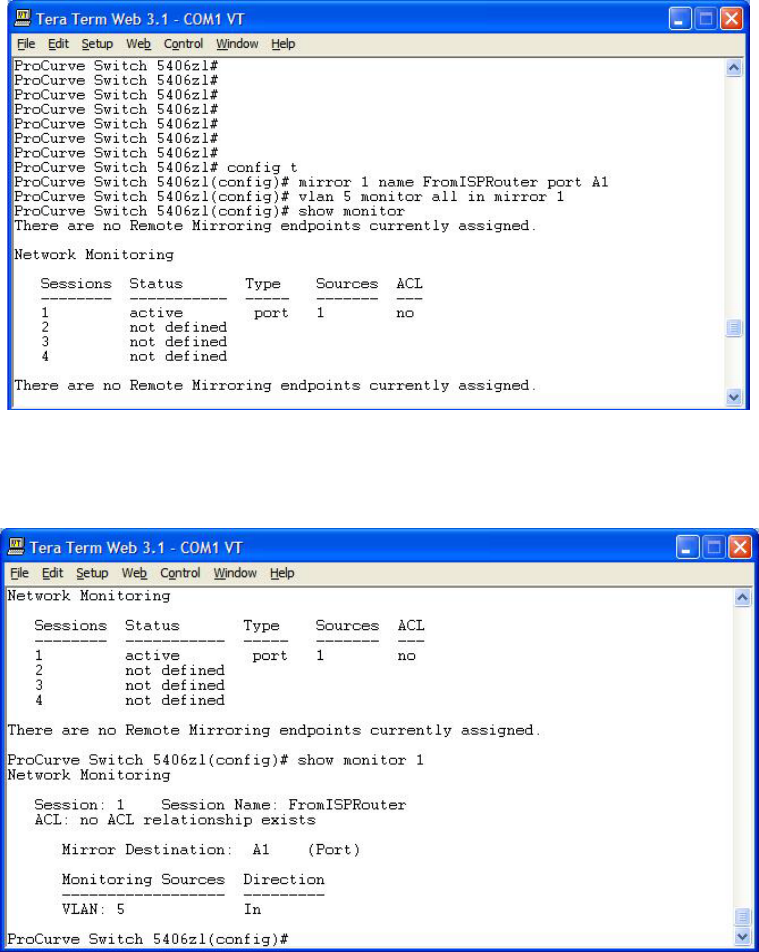

We need to setup a mirror between VLAN 5 (or port B24 if you wish) and port A1 of our
TMS zl Module in monitor mode. The following screen shot shows how we accomplish
that.
Here is more information from the show commands that detail our mirror configuration.
Now is a good time to save our configuration work on the switch!
