TMS zl Module Planning and Implementation Guide 2009-08
Table Of Contents
- Contents
- Glossary of Acronyms and Abbreviations
- 1.0 Purpose
- 2.0 Intended Audience
- 3.0 Objectives
- 4.0 Prerequisites
- 5.0 Skills
- 6.0 The HP ProCurve Threat Management Services zl Module
- 7.0 Common TMS Security Control Points
- 8.0 Deployment Considerations
- 9.0 Installation and Preparation of the TMS zl Module
- 10.0 Configuration of the TMS zl Module
- 11.0 Using multiple HP ProCurve Threat Management Services zl Modules
- Appendix A – Additional References
- Appendix B – Sample Company Information Assets Spreadsheet
- Sample “Information Assets” tab (See Embedded “Company Information Assets” Microsoft Excel 2003 spreadsheet)
- “Server Network Details” tab (See Embedded “Company Information Assets” Microsoft Excel 2003 spreadsheet)
- “TMS Zones” tab (See Embedded “Company Information Assets” Microsoft Excel 2003 spreadsheet)
- “Firewall Rules” tab (See Embedded “Company Information Assets” Microsoft Excel 2003 spreadsheet)
- /Sample “Company Information Assets” Microsoft Excel 2003 spreadsheet
- Appendix C – Information Gathering Tools
- Appendix D - Updating Switch Software
- Appendix E – Emergency Recovery Process
Page 10

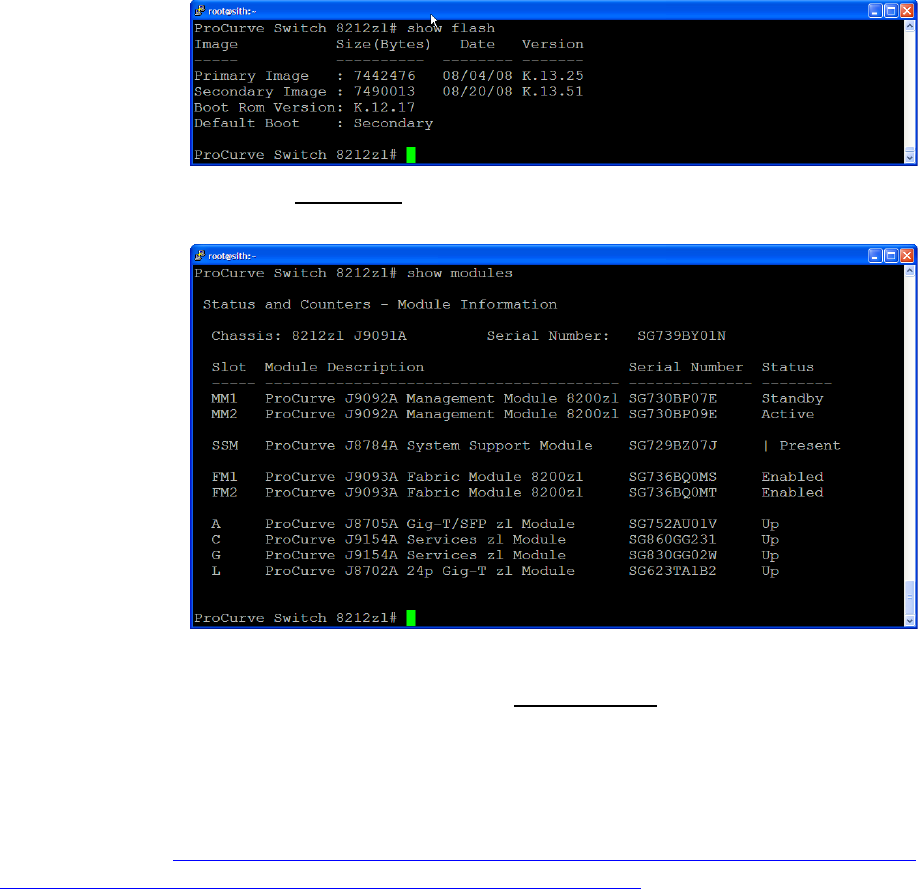

show flash
shows version of software on each image.
The TMS zl Modules in slots C and G are now
correctly recognized in the show modules
command output.
Reducing network outage from updating switch software on an 8200zl
series switch with redundant management modules
Chapter 15 of the HP ProCurve Series 3500yl Switches, Series 5400zl Switches, 6200yl Switch,
and Series 8200zl Switches Management and Configuration Guide provides details on various
management module redundancy commands. This section provides specific guidance on the use
of these commands to perform a switch software update with reduced traffic outage by taking
advantage of redundant management modules in an 8200 zl series switch.
The first step is to perform the show redundancy CLI command in order to confirm that there
are redundant management modules and to see if redundancy is enabled.
