Page 14
Note: This next step will cause the switch to interupt traffic as the standby
module takes over the active role of handling switch processing.
Now issue the redundancy switchover command to force a switch between the currently active
management module running the old version of switch software that doesn’t correctly recognize
the TMS zl Modules to the standby management module running the new version of switch
software that does properly recognize the TMS zl Modules.

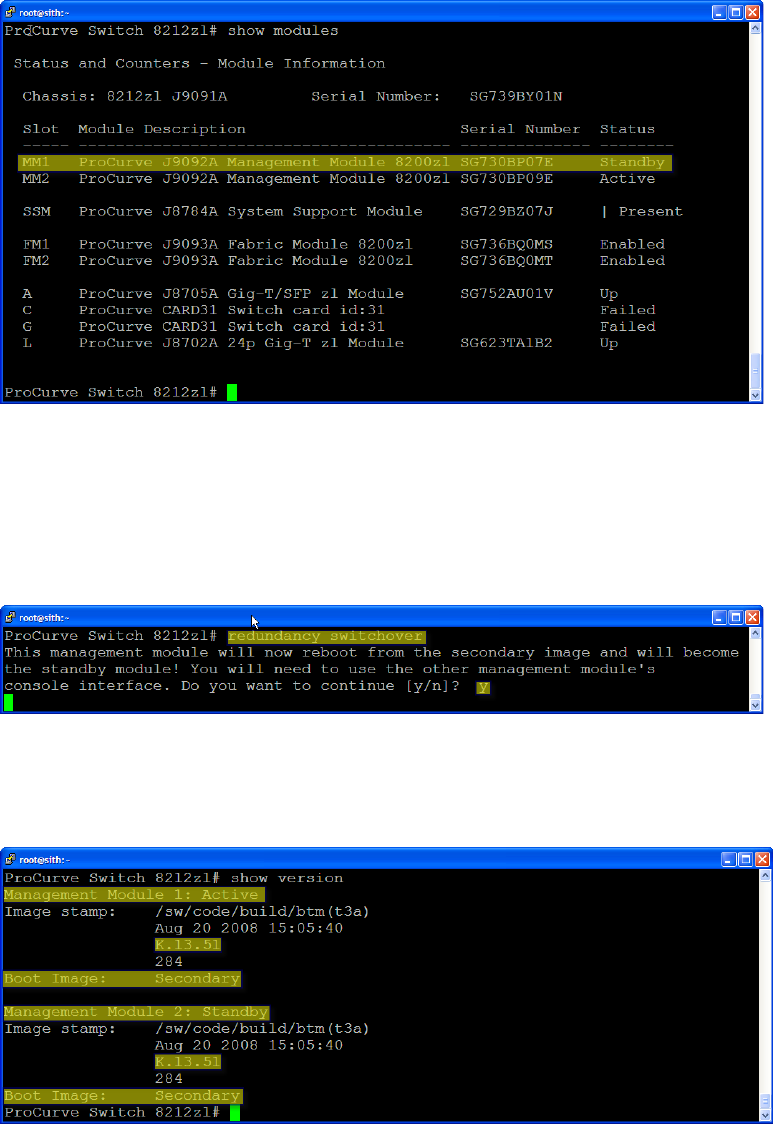

Issue the show version command and note that now the management module in slot MM1 is the
active one, that the management module in MM2 is the standby, that both are now running the
new version of switch software, and the switch is still configured to boot from the new switch
software in its secondary flash. This is illustrated in this next screen shot.
