Page 18

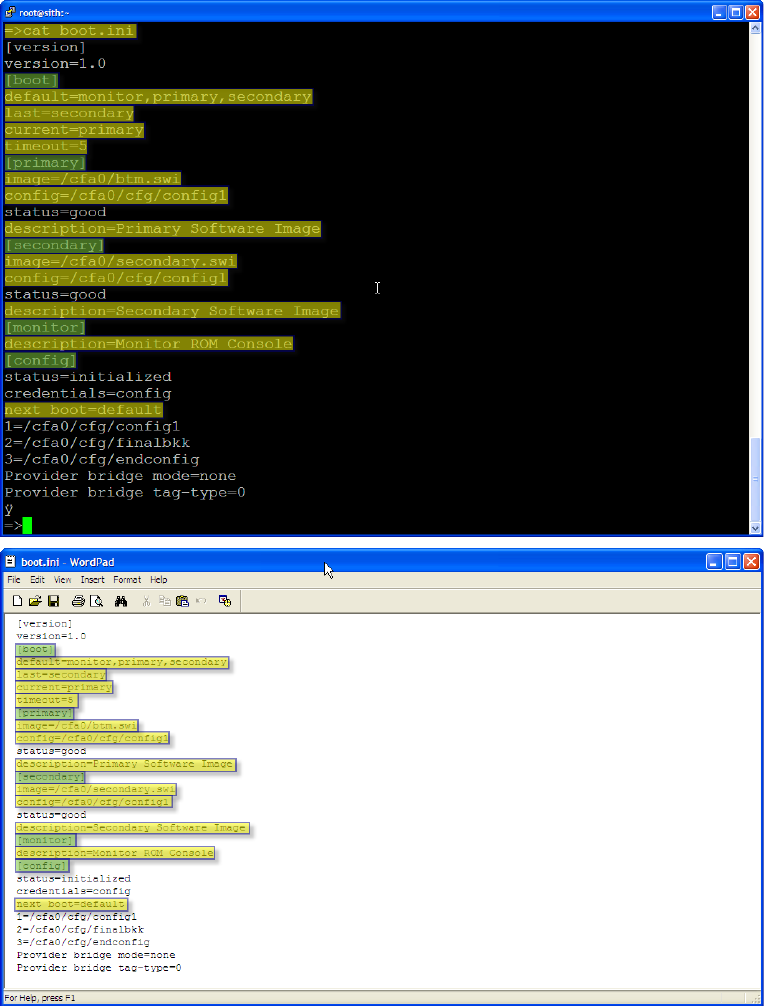

While not immediately relevant to the emergency recovery there are items worth noting in the
first green highlighted section, “[boot]”. We see in the yellow highlighted line immediately
following the section header that the default is to boot the monitor, then the primary, and, failing
that, the secondary. In the next three yellow highlighted lines, we see that the switch was last
booted from the secondary, is currently configured to boot from primary, and the option to
choose differently during the boot process will expire in 5 seconds (proceeding to then boot from
the switch software image in the primary flash).
In the second green highlighted section, “[primary],” we see in the yellow highlighted line
immediately following it that the file “btm.swi” contains the K.13.25 switch software currently
