Page 19
7.1.3 VPN Gateway
The TMS zl Module is shown in Figure 4 acting as a Remote Access VPN
Gateway for a teleworker, providing a secure connection over the Internet.

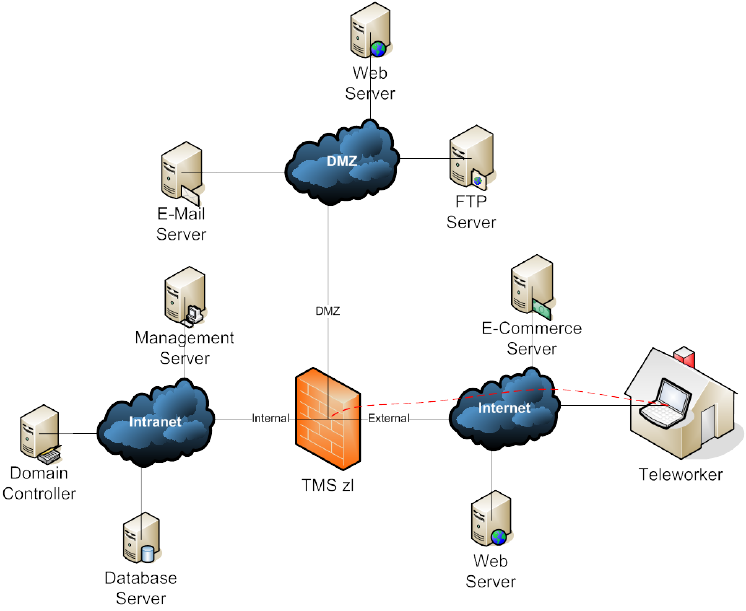

Figure 4: Perimeter Security Control Point Remote Access VPN
Figure 5 shows the TMS zl Module performing as a site-to-site VPN Gateway
for a branch office, also providing a secure connection over the Internet.
