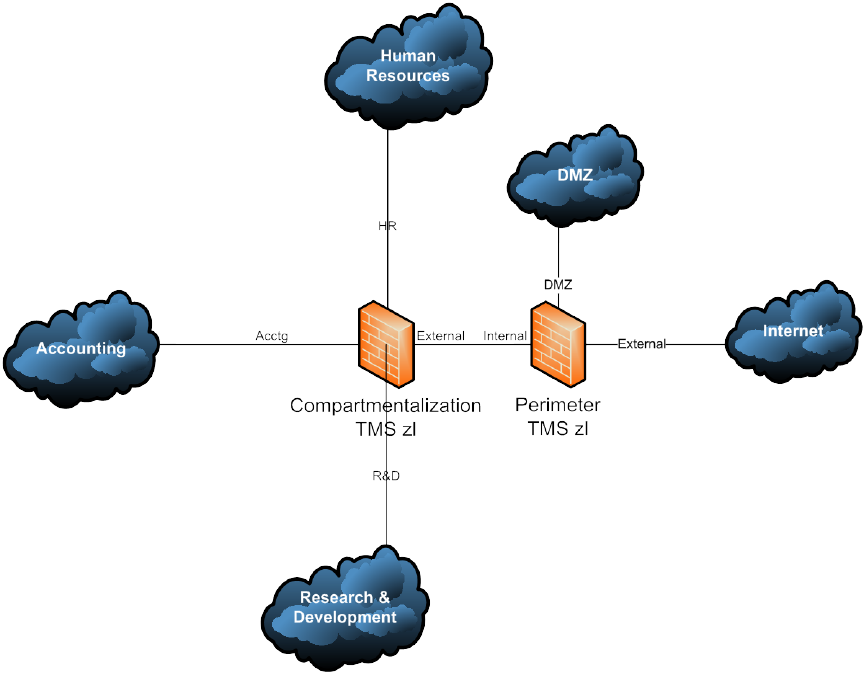

Figure 14: Functional Compartmentalization Security Control Point(s)
The example shown above in Figure 14 is a layered security variation on the
Perimeter/Compartmentalization college campus network scenario shown previously. In
this example, a corporate network is protected by one TMS zl Module at its perimeter
with that module’s Internal zone being the same VLAN as the External zone of an
additional TMS zl Module that provides another layer of security control to the corporate
network. This implementation compartmentalizes the higher-risk Research and
Development portion of the corporate network from the sensitive-data residing in the
Human Resources and Accounting portions of the corporate network.
7.3.1 Firewall
The basic guiding principle of a firewall is that of least privilege. Ideally, only
network traffic between security zones that has a legitimate, documented-in-
the-security-policy business need to traverse the zone boundary at the firewall
should be permitted. In specific policy terms, this typically translates to
identifying application components residing in one or more zones. This
includes the specific network communications between internal or external
users of that application and each application component. This may also
include the specific network communications needs between components of an
application that reside in different security zones. All other traffic should be
prohibited.
