Page 49

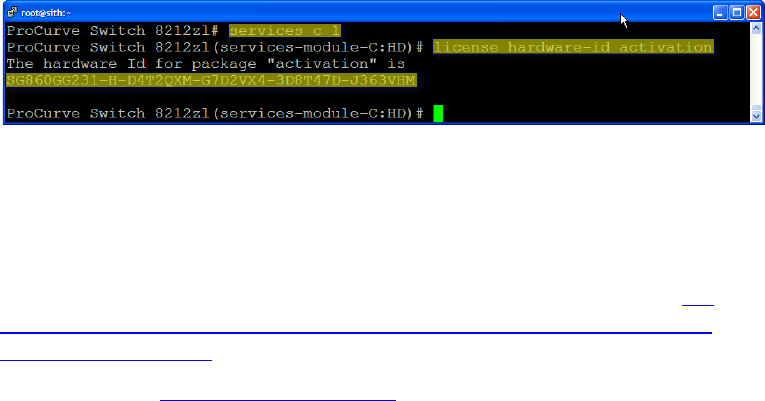

Once in the Service OS context, issue the licenses hardware-id activation
command to display the activation hardware ID that will be needed, along with
the product registration ID, to generate the activation license key on the My
ProCurve portal.
Make note of the activation hardware ID. HP ProCurve recommends copying
and pasting the activation hardware ID into a text file to avoid manual
transcription errors in the next step.
9.2.3 Activating the TMS Application
Additional details and screenshots may be found in Appendix D of the HP
ProCurve Switch Threat Management Services zl Module Installation and
Getting Started Guide, but activating the product is accomplished by:
1. Browsing to https://my.procurve.com.
2. Logging in (create a new user account if necessary).
3. Click My Software.
4. Click Device Software License.
5. Enter the Registration ID number that came on the card included with the
product in the Registration ID field and click the Next button.
6. Enter the Activation Hardware ID number (from the Service OS license
hardware-id activation command, above) in the Hardware ID field and
click the Next button.
7. Check the box next to “I agree to the license terms” and click the Generate
License button.
8. Copy the activation license key displayed in the resulting screen. HP
ProCurve recommends pasting it to a text file and saving in the event there
is any difficulty in next step.
9. Return to the Service OS command line and issue the command licenses
install activation {activation-license-key}.
The product is now activated. The installation of the license may be confirmed
with the show licenses command. When ready to proceed, issue the boot
product command to start the Product OS.
9.2.4 Accessing the TMS Product
Now that the product has been successfully activated, we can now access the
“Product OS” context. This is where the actual Threat Management Services
product is accessed via the switch command line via the services {TMS-zl-
Module-slot} 2 command (e.g. services c 2).
