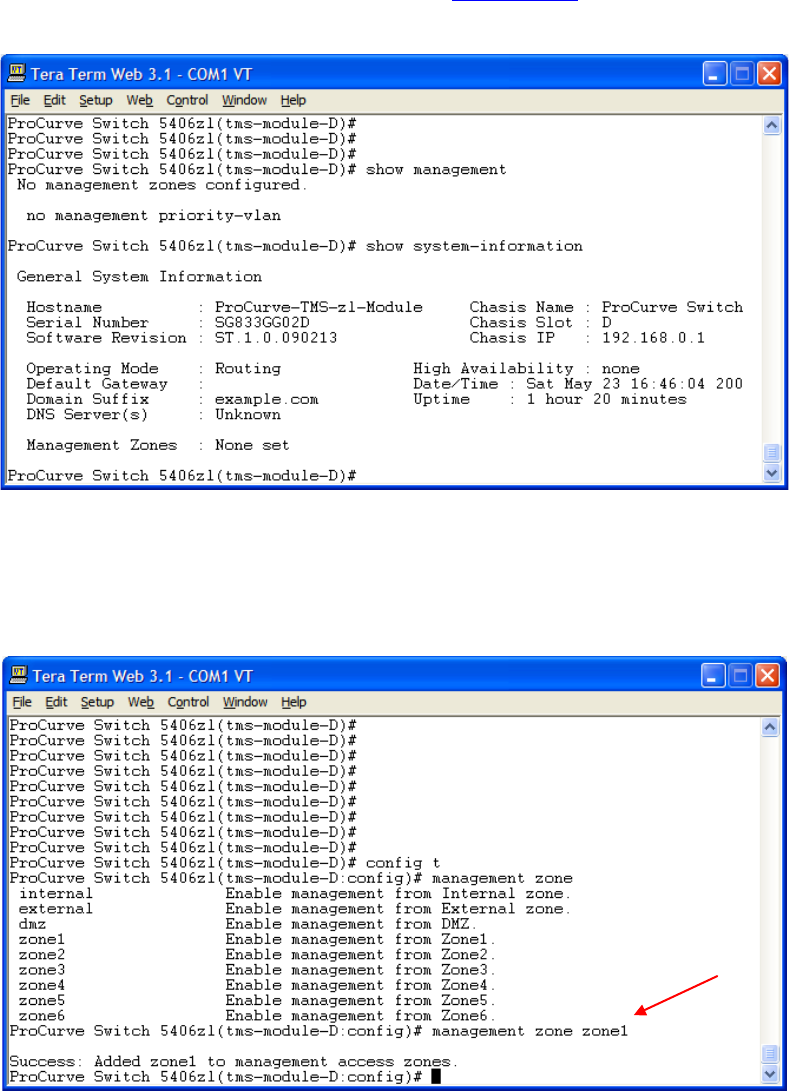

Using the show management command, we can see there are no management zones or
priority VLAN identified. The show system-information command also gives us a lot
of important information. The show access-policy command will allow you to see the
default policies. Note that there is a policy for RIP and OSPF from the “Self” zone to
every other zone and vice-versa.
Note: The TMS zl Module gets its time from the switch. Remember, it is very
important the time is set correctly. See Section 9.2. for more information on this
topic.
1
10.3 Management VLAN and Zone
Our next step is to identify a “management” zone, which in our example is “zone1”. We
want to go into the configuration context and then use the management zone command
to specify the management zone.
